Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cellular Phone >> Cellular Telephone Schematics >> Base System

Base System

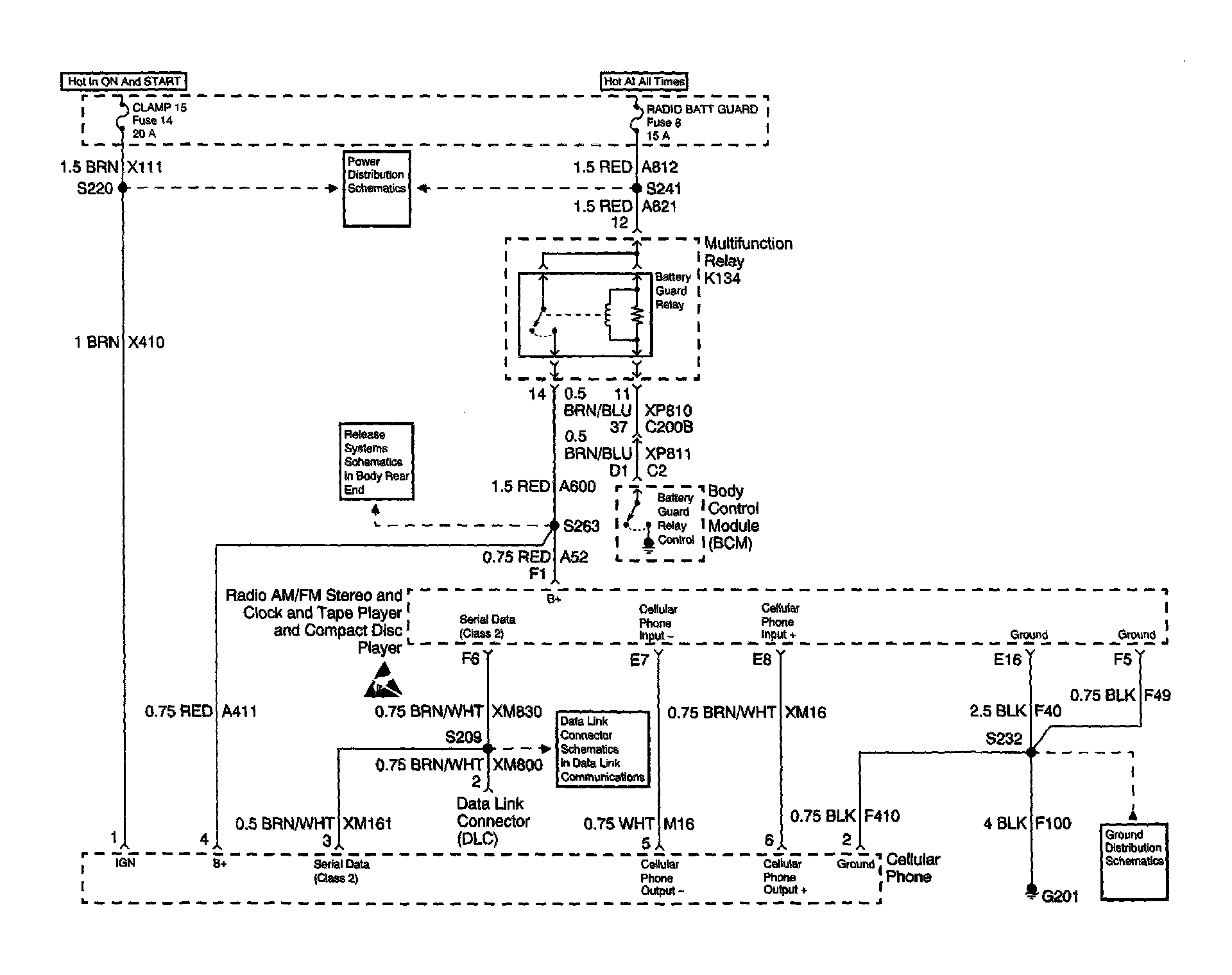

Cellular Telephone Schematics: Base System: Cellular Telephone:
