Immobilizer

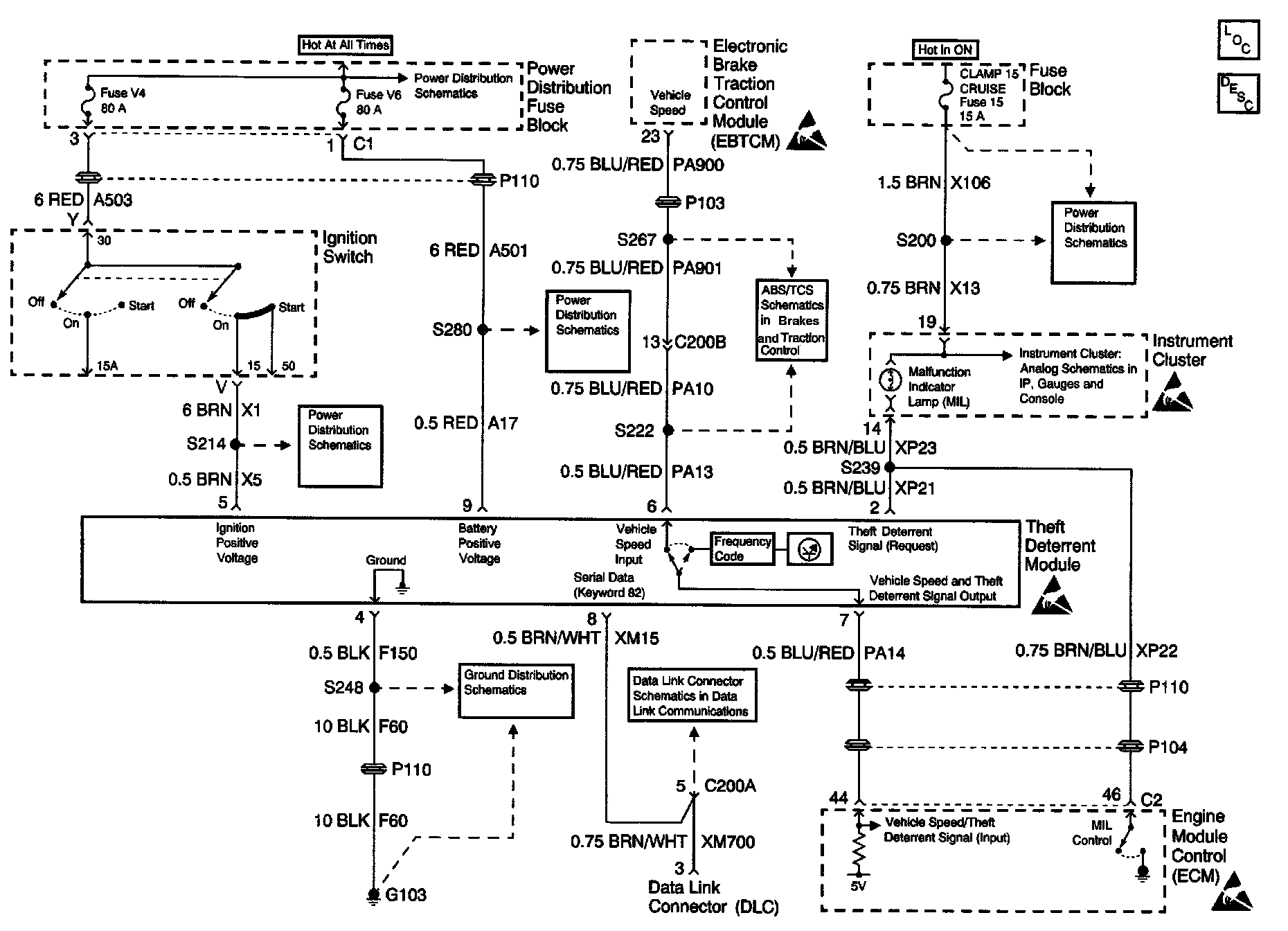

Theft Deterrent System Schematics: Immobilizer: Power, Ground, DLC, And Vehicle Speed Input:
