EBTCM, Can Buss, ECM and Vehicle Speed Signal
EBTCM, Can Buss, ECM and Vehicle Speed Signal

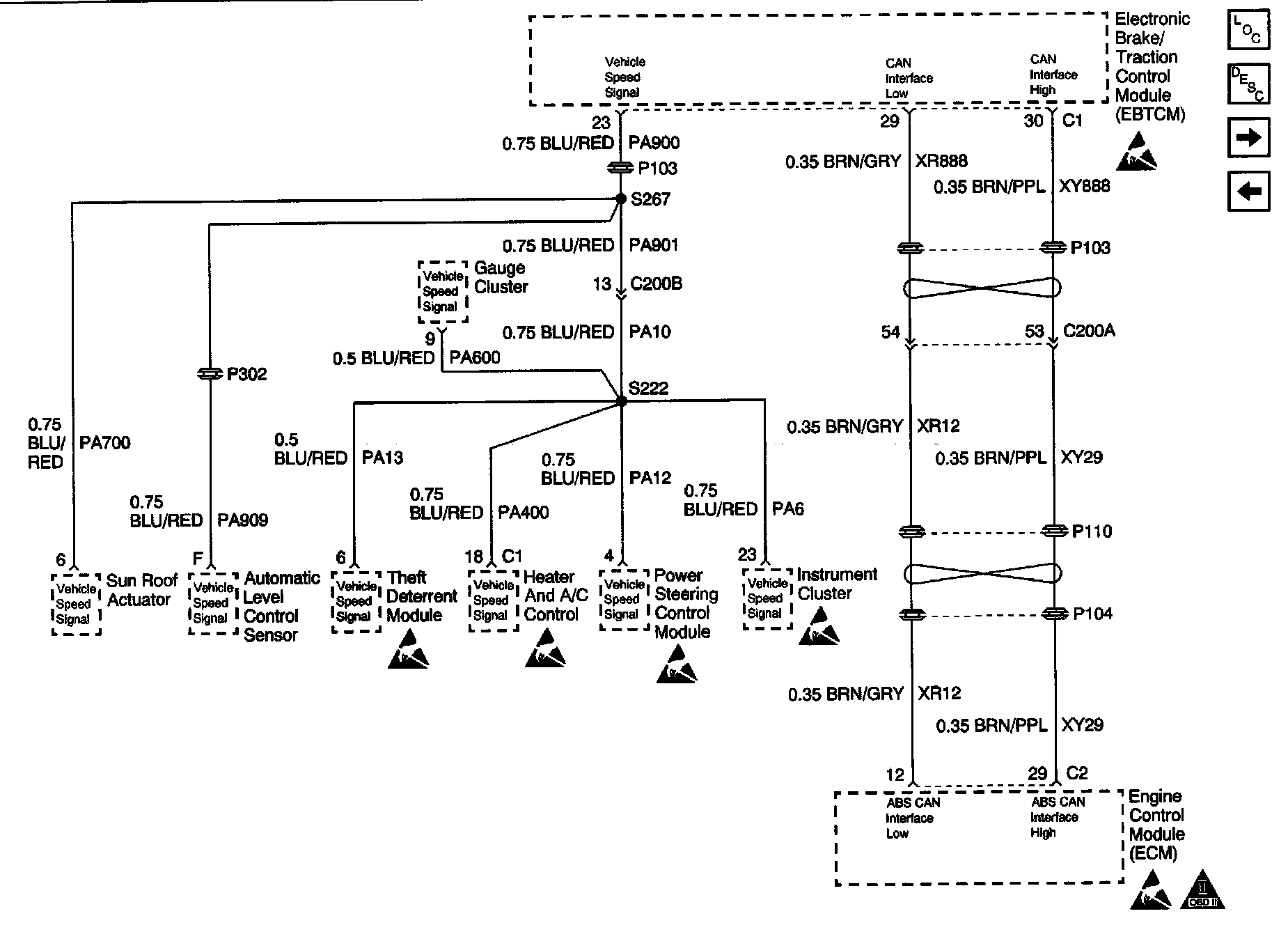

ABS Schematics: EBTCM, Can Buss, ECM And Vehicle Speed Signal:
