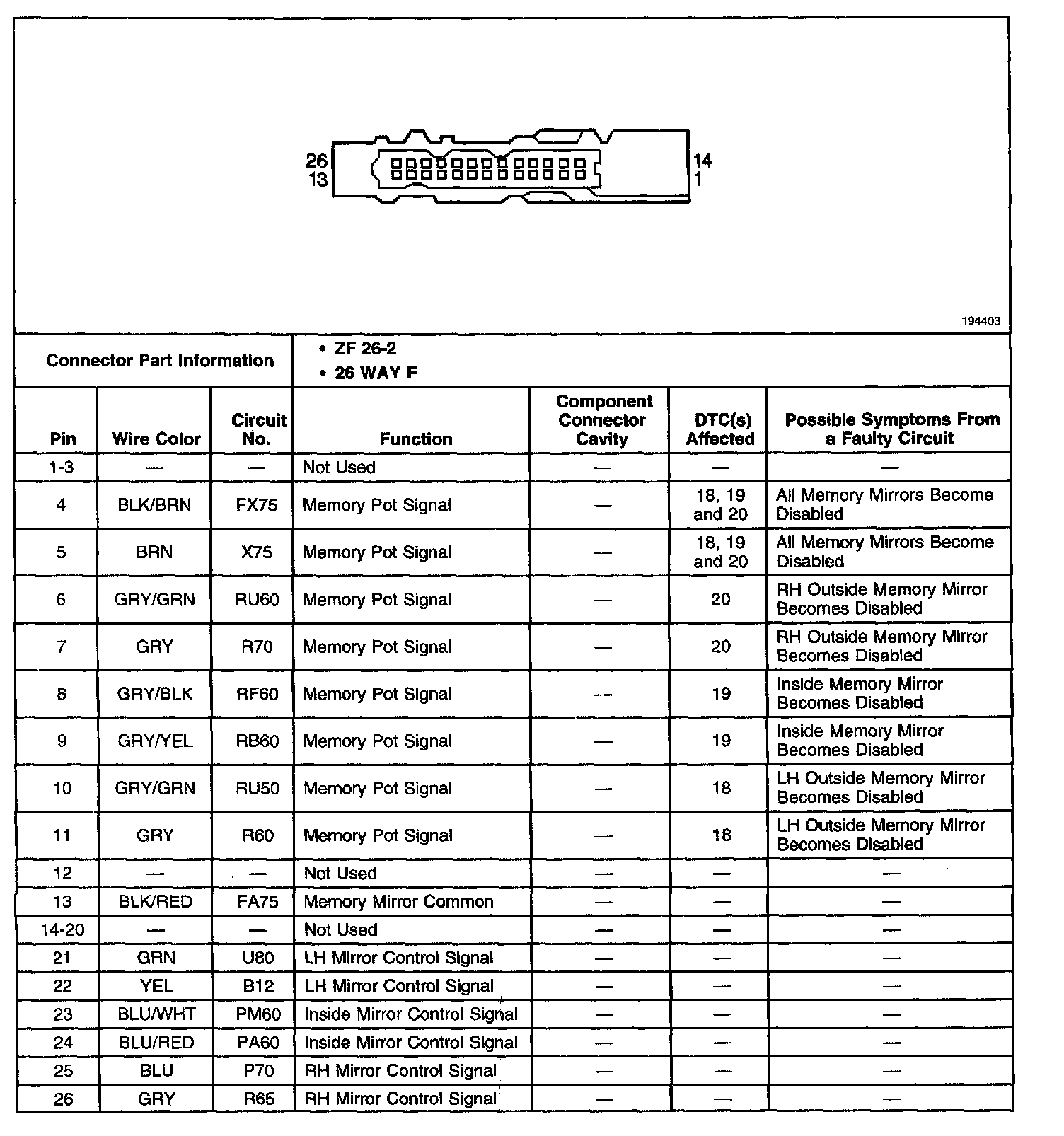

Driver Seat Adjuster Memory Module (Connector C2)

Driver Seat Adjuster Memory Module (Connector C2):
