Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> System Diagram >> Sound Processor Interface Connector C2

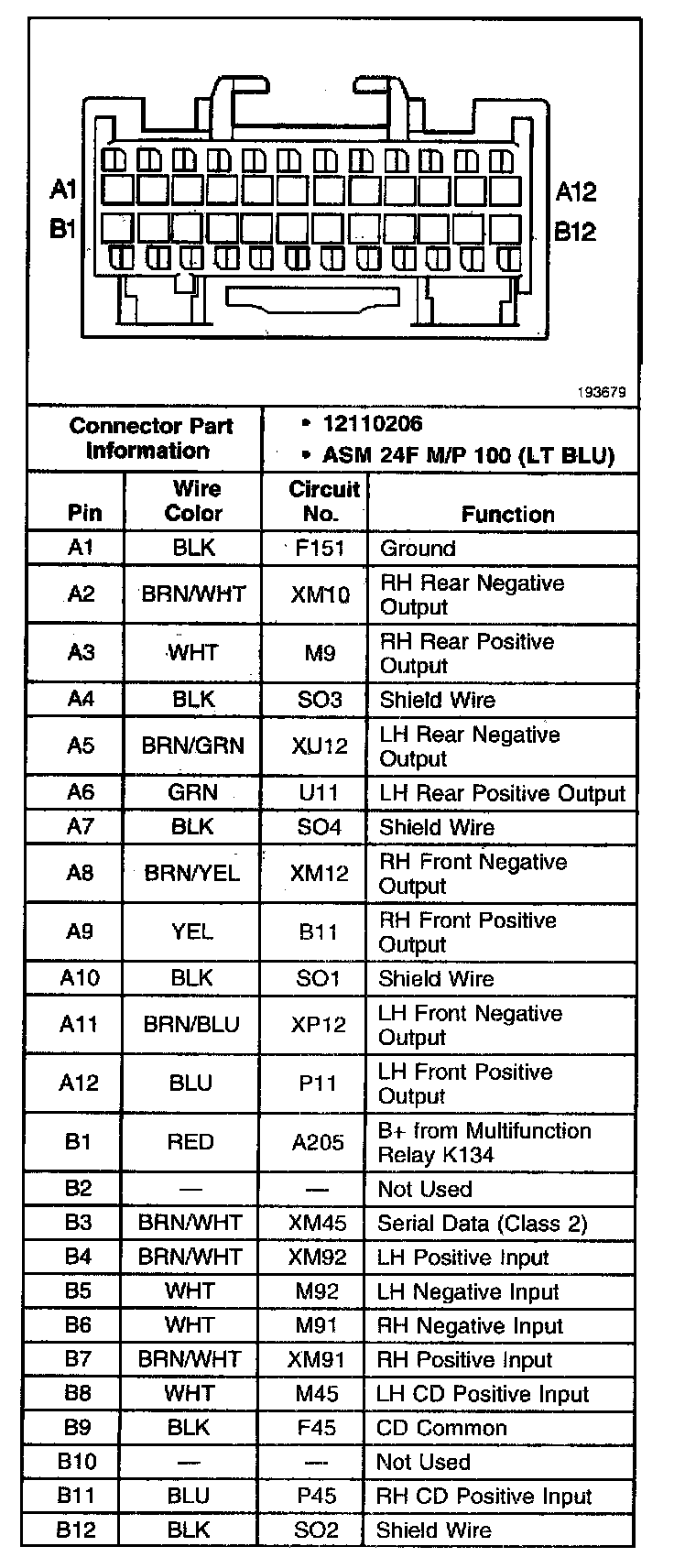

Sound Processor Interface Connector C2

Sound Processor Interface Connector C2:
