Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> Compact Disc Player (CD) >> CD Changer >> Compact Disk Changer (Bose System)

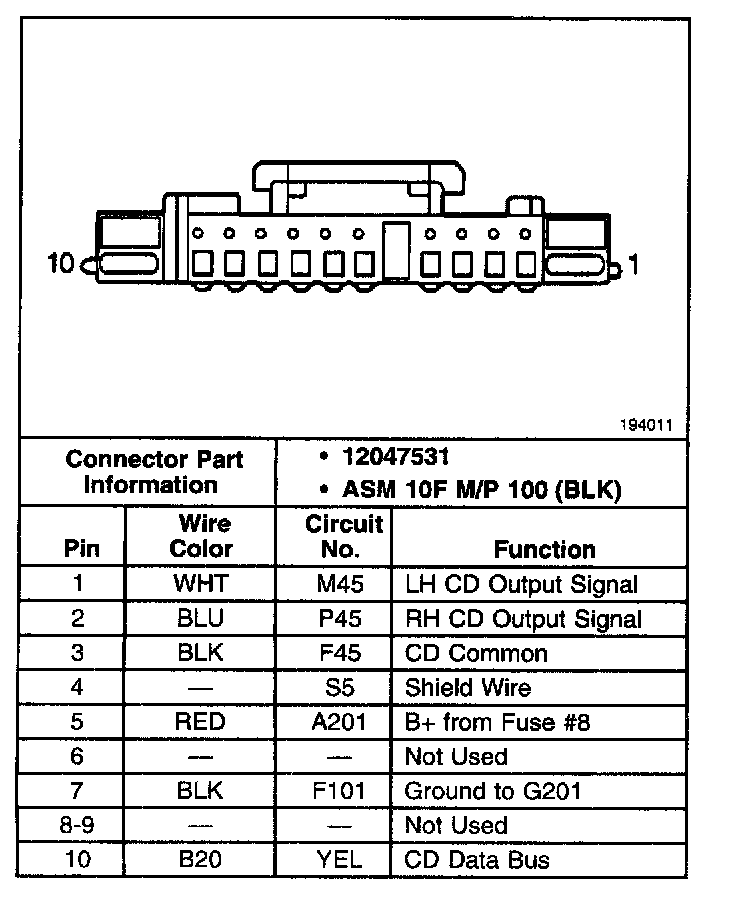

Compact Disk Changer (Bose System)

Compact Disk Changer (Bose System):
