Brake Pedal Replacement
Removal Procedure1. Remove the brake pedal bracket assembly. Refer to Brake Pedal Bracket Replacement.

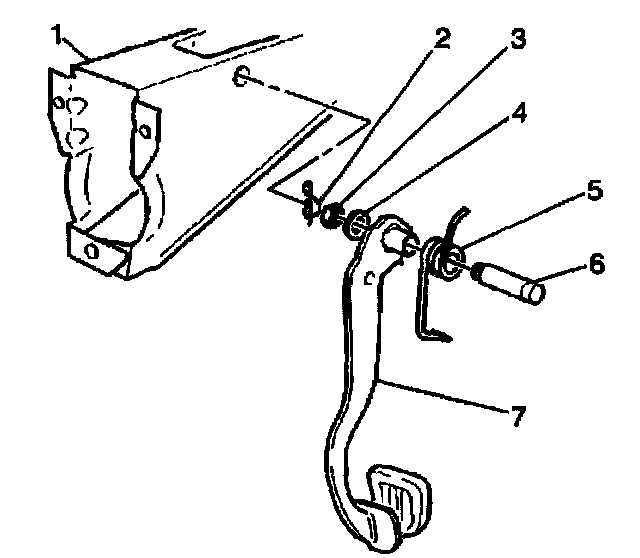

2. Clamp the brake pedal bracket (1) in a vice.
3. Remove the retaining spring (2).
4. Remove the nut (3) from the brake pedal axle (6).
5. Remove the washer (4).
6. Use a drift to carefully drive the brake pedal axle (6) out of the brake pedal bracket (1).
7. Remove the brake pedal arm (7) with brake pedal return spring (5) from the brake pedal bracket (1).
8. Inspect all the components for wear.
Installation Procedure
1. Attach the brake pedal return spring (5) to the brake pedal arm (7).
2. Install the brake pedal arm (7) in the brake pedal bracket (1).
3. Install the brake pedal axle (6) into the brake pedal bracket (1).
Important: Lubricate the brake pedal axle (6) before assembly.
4. Install the washer (4) to the pedal axle (6).
Notice: Refer to Fastener Notice in Service Precautions.
5. Install the nut (3) to the brake pedal axle (6).
^ Tighten the nut (3) to 18 Nm (13 ft. lbs.).
6. Install the retaining spring (2).
7. Remove the brake pedal bracket (1) from the vice.
8. Install the brake pedal bracket assembly. Refer to Brake Pedal Bracket Replacement.
