Sealing Strip Replacement - Rear Door Upper

REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Remove the water deflector.
3. Remove the inner belt sealing strip.
4. Remove the outer belt sealing strip.
5. Remove the door window weatherstrip.
6. Remove the door vent window and division channel.
7. Remove the inside door handle.
8. Remove the door window regulator and motor.
9. Remove the door window.

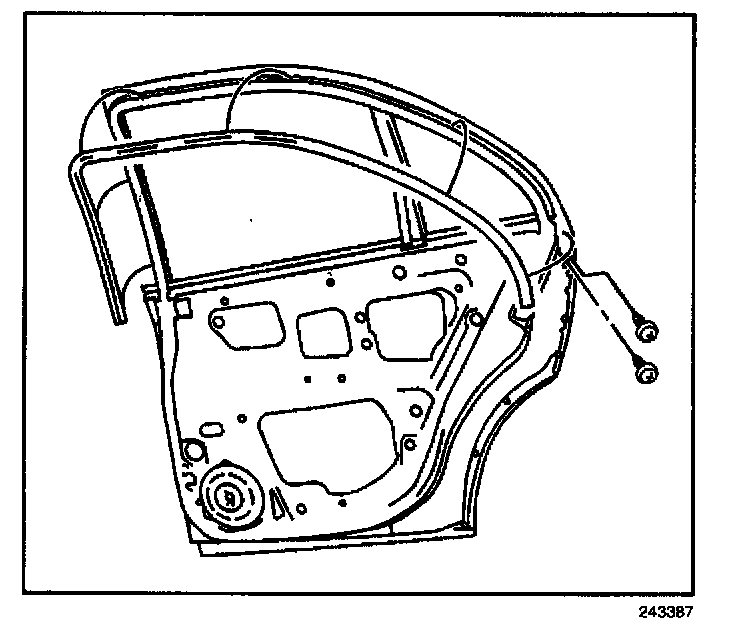

10. Remove the door upper sealing strip.

INSTALLATION PROCEDURE




1. Install the door upper sealing strip.
2. Install the door window.
3. Install the door window regulator and motor.
4. Install inside door handle.
5. Install the door vent window division channel.
6. Install the door window weatherstrip.
7. Install the outer belt sealing strip.
8. Install the inner belt sealing strip.
9. Install the water deflector.
10. Install the door trim panel.
