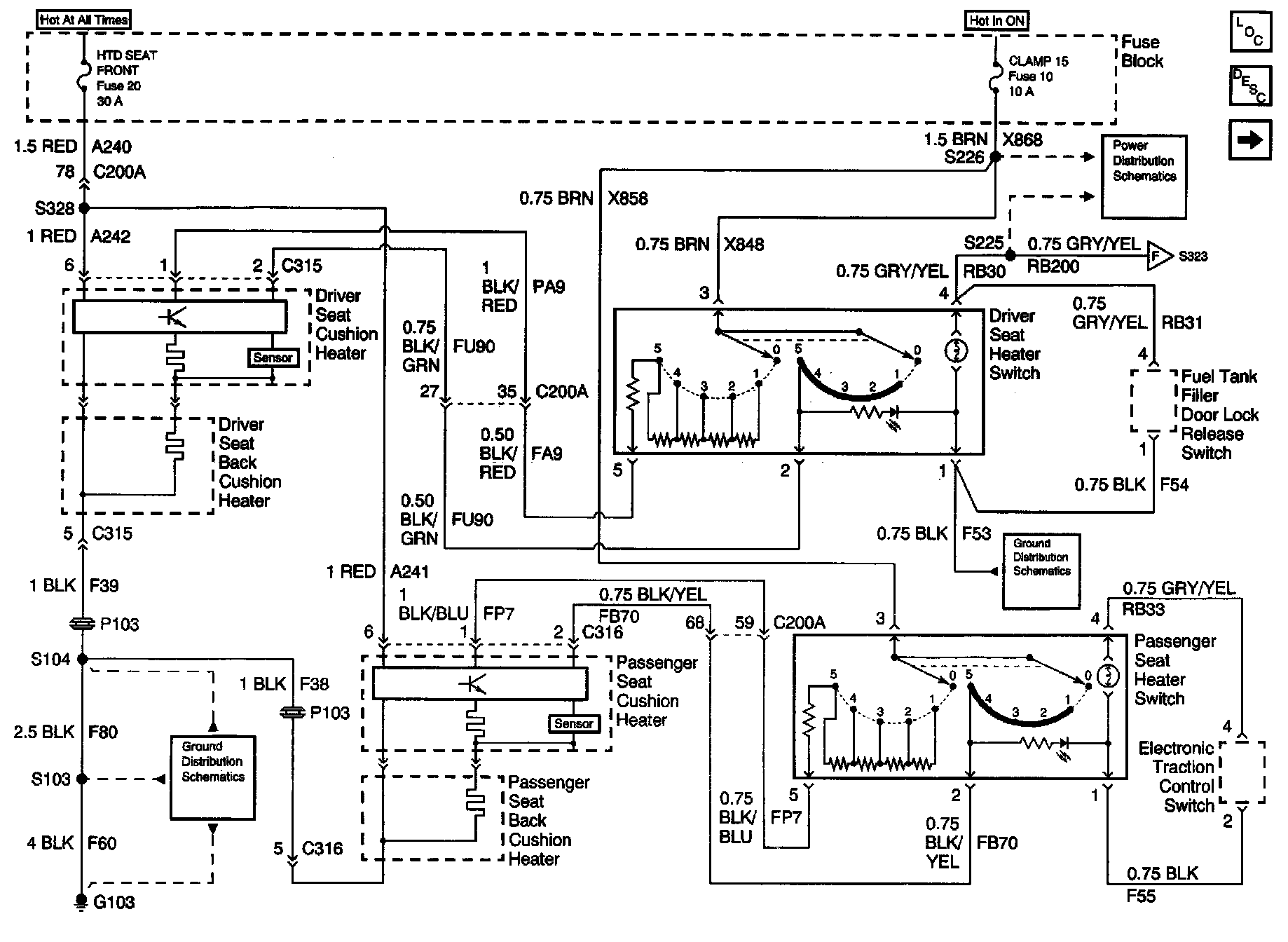

Driver and Passenger Seat Heaters and Heater Switches

Heated Seats Schematics: Driver And Passenger Seat Heaters And Heater Switches:
