Diagnostic System Check - Power Sunroof
A Diagnostic System Check - Power Sunroof:
TEST DESCRIPTION

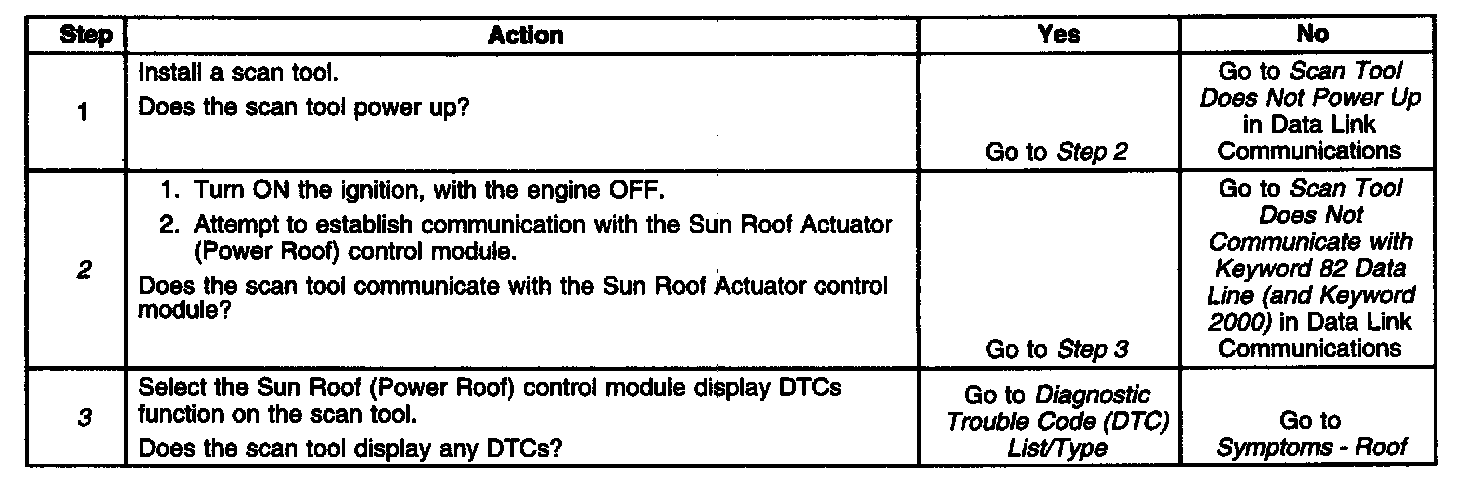

The number(s) below refer to the step number(s) on the diagnostic table.
2. Lack of communication may be due to a partial malfunction of the class 2 serial data circuit or due to a total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
3. Determining if their are any module malfunction codes.
