Outside Remote Control Rear View Mirror Switch Without Memory
Outside Remote Control Rear View Mirror Switch Without Memory

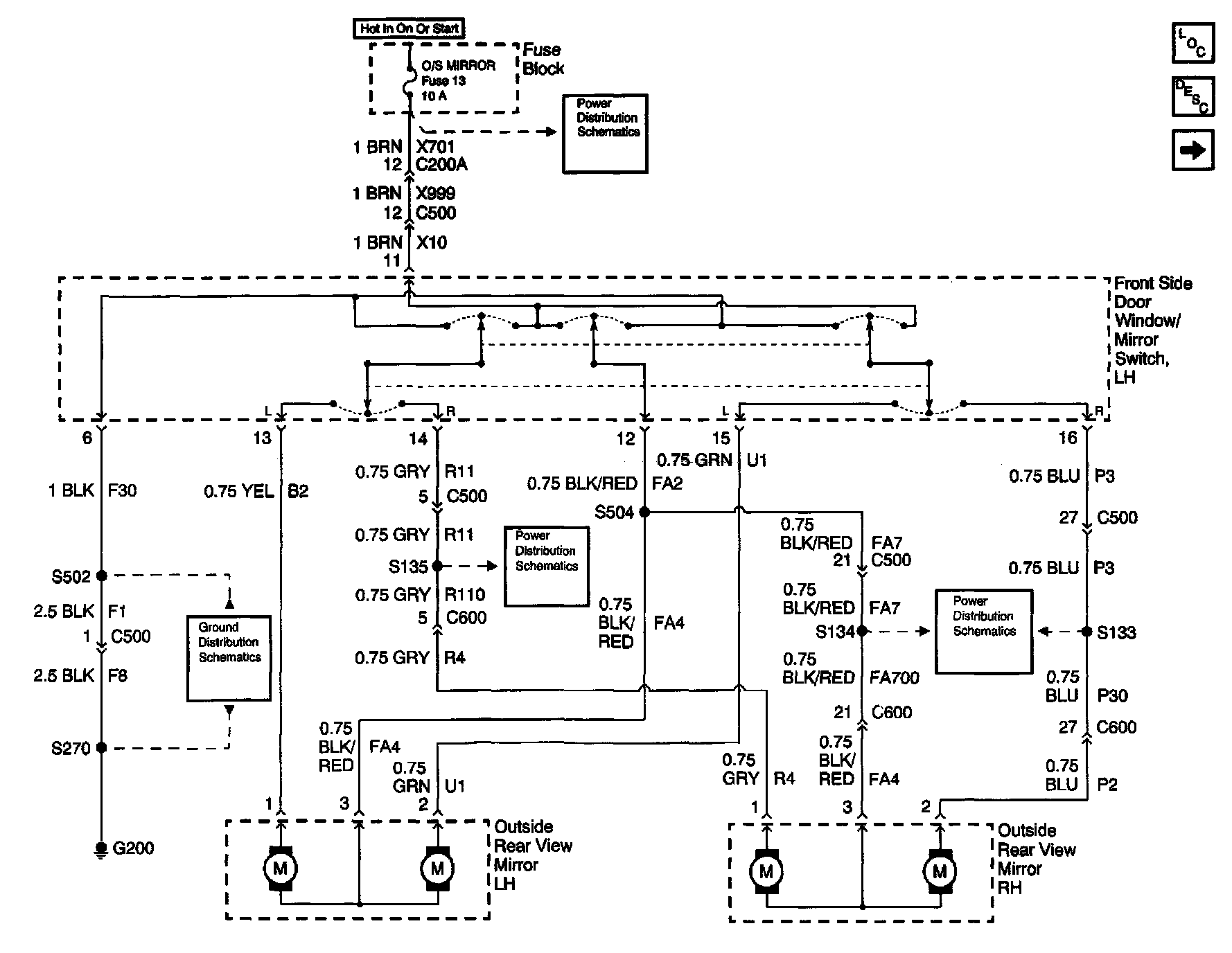

Outside Mirror Schematics: Outside Remote Control Rear View Mirror Switch Without Memory:
