Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Mirrors >> Diagrams >> Connector Views >> RH Outside Rear View Mirror (With Memory)

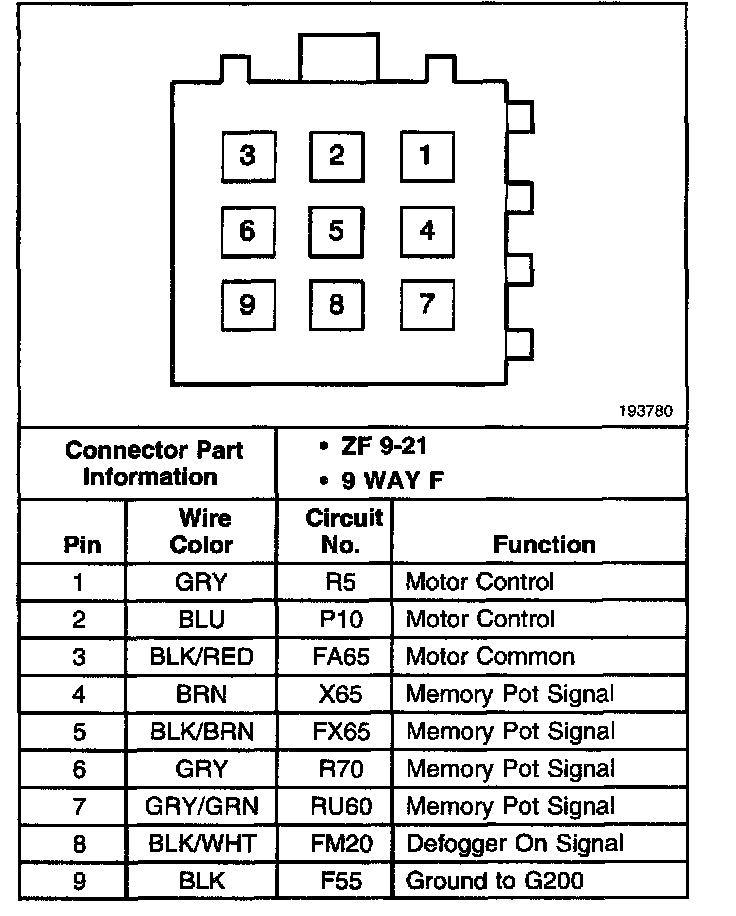

RH Outside Rear View Mirror (With Memory)

RH Outside Rear View Mirror (With Memory):
