Lock Actuator Replacement - Front Door

REMOVAL PROCEDURE

CAUTION: Refer to SIR Handling Caution in Service Precautions.




1. Disable the SIR system, if equipped with the SIR side impact system. Refer to Disabling the SIR System in Restraint Systems.
2. Remove the front door trim panel.
3. Remove the front door water deflector.
4. Remove the Inflatable restraint side impact sensor mounting plate if equipped.
6. Remove all rods that attach to the lock.
7. Remove the front door actuator electrical connectors.

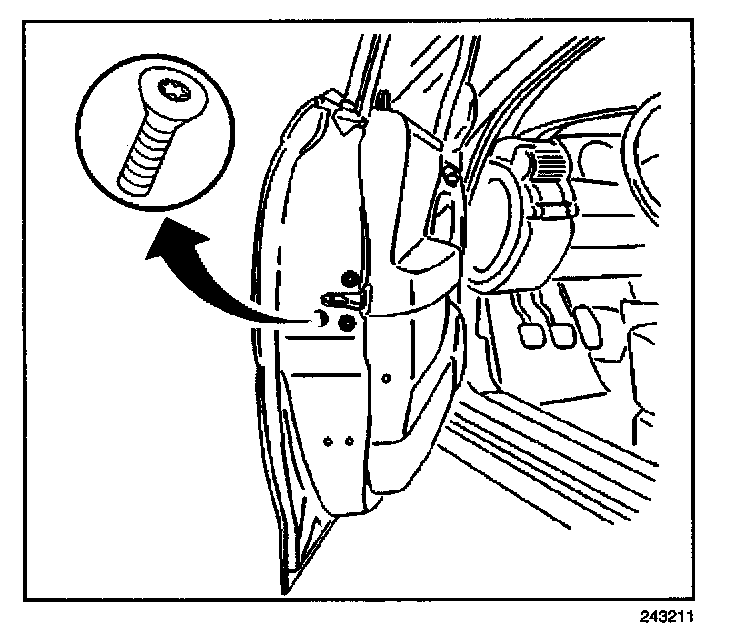

8. Remove the front door lock screws.
9. Remove the front door lock from the door.

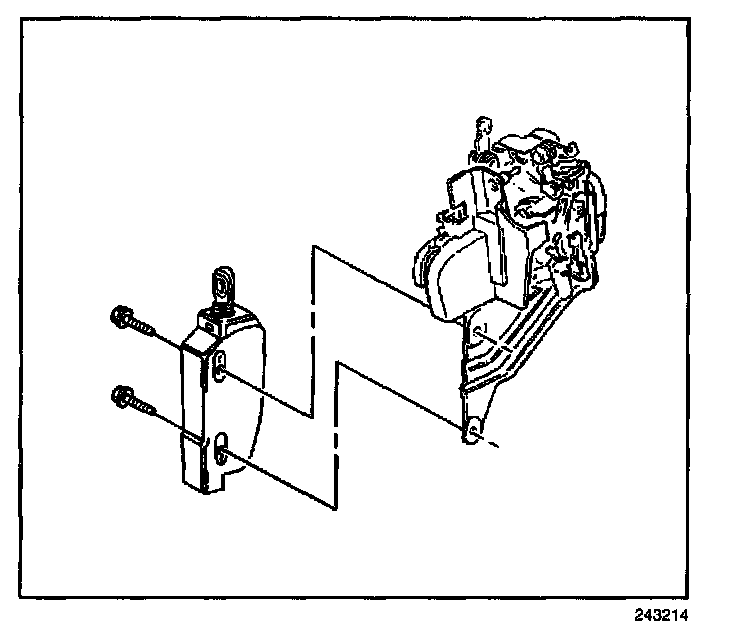

10. Remove the front door lock actuator screws.
11. Remove the front door lock actuator from the door lock.

INSTALLATION PROCEDURE




1. Install the front door lock actuator to the door lock.
2. Install the front door lock actuator screws.




3. Install the front door lock to the door.
4. Install the front door lock screws.
5. Install the front door actuator electrical connectors.
6. Install all rods that attach to the lock.
7. Install the front door inside handle rod.
8. Install the Inflatable restraint side impact sensor mounting plate if equipped.
9. Install the front door water deflector.
10. Install front door trim panel.
11. Enable SIR system, if equipped with SIR side impact system. Refer to Enabling the SIR System in Restraint Systems.
