Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Diagrams >> RH Rear Side Door Lock Actuator

RH Rear Side Door Lock Actuator

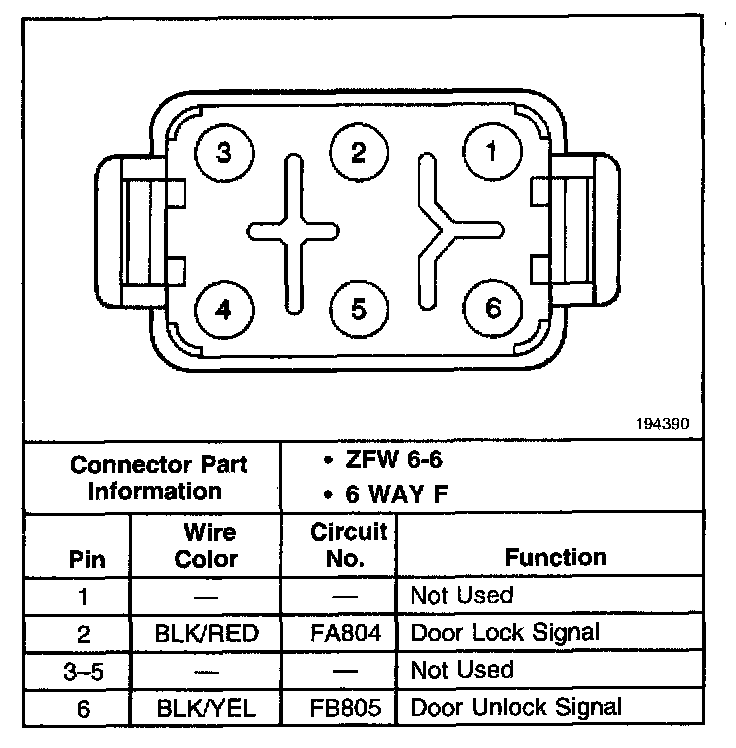

RH Rear Side Door Lock Actuator:
