Stop Lamp Switch, BCM, and Transmission Control Selector Switch
Stop Lamp Switch, BCM, and Transmission Control Selector Switch

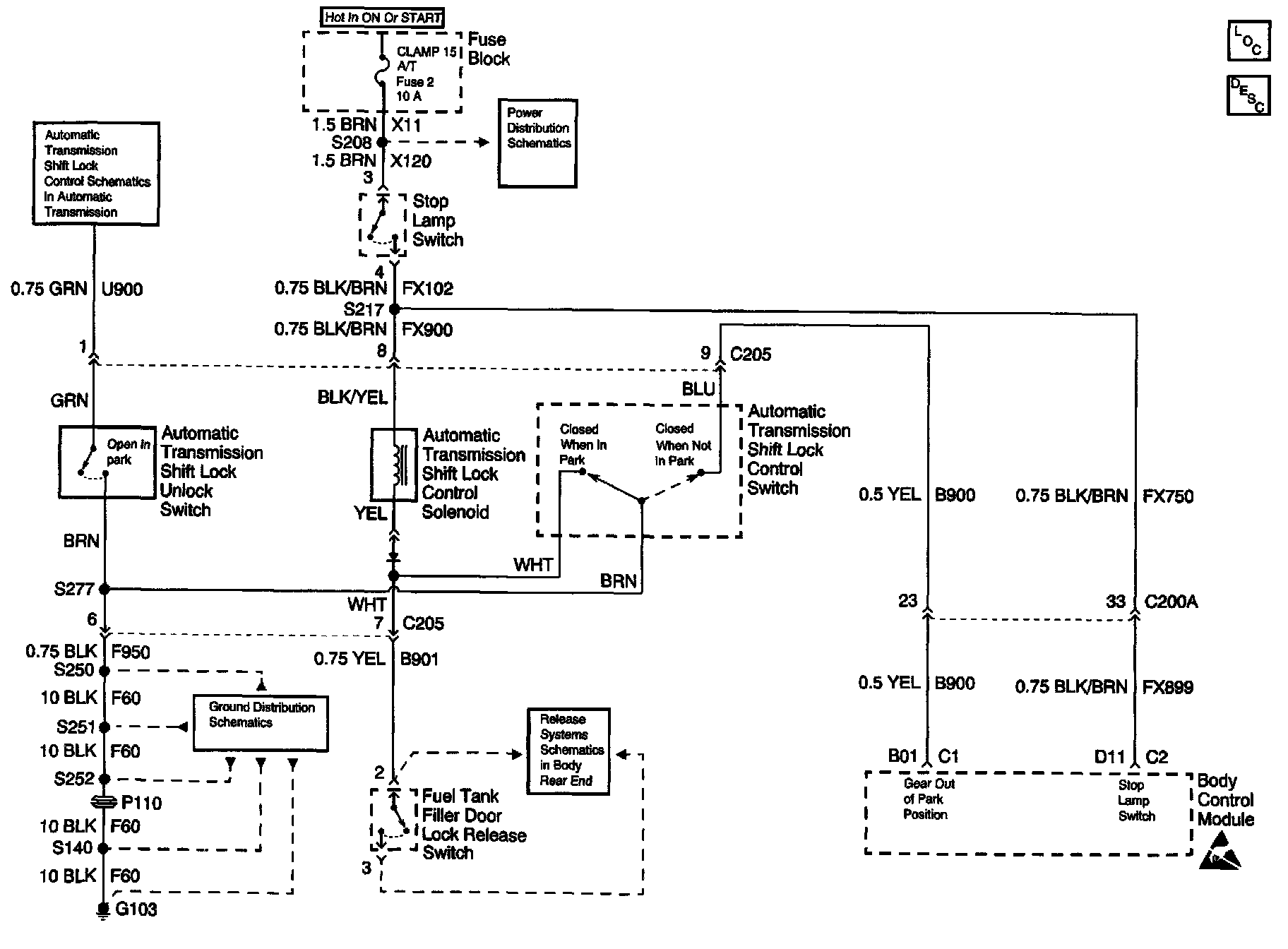

Door Lock/Indicator Schematics: Stop Lamp Switch, BCM, And Transmission Control Selector Switch:
