LH and RH Front and Rear Side Door Lock Actuators
LH and RH Front and Rear Side Door Lock Actuators

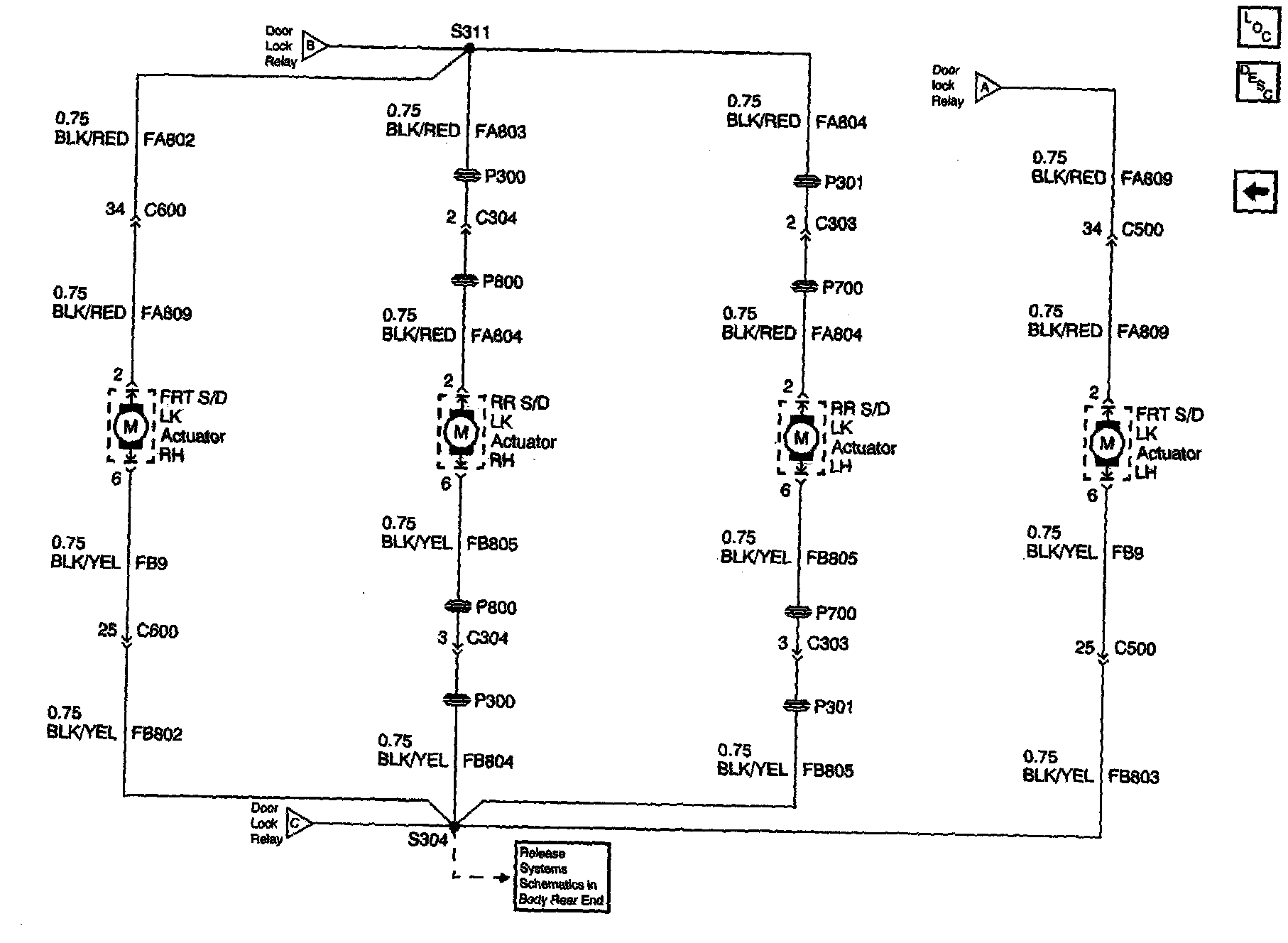

Door Lock/Indicator Schematics: LH And RH Front And Rear Side Door Lock Actuators:
