LH and RH Front Side Door Lock Switches and BCM
LH and RH Front Side Door Lock Switches and BCM

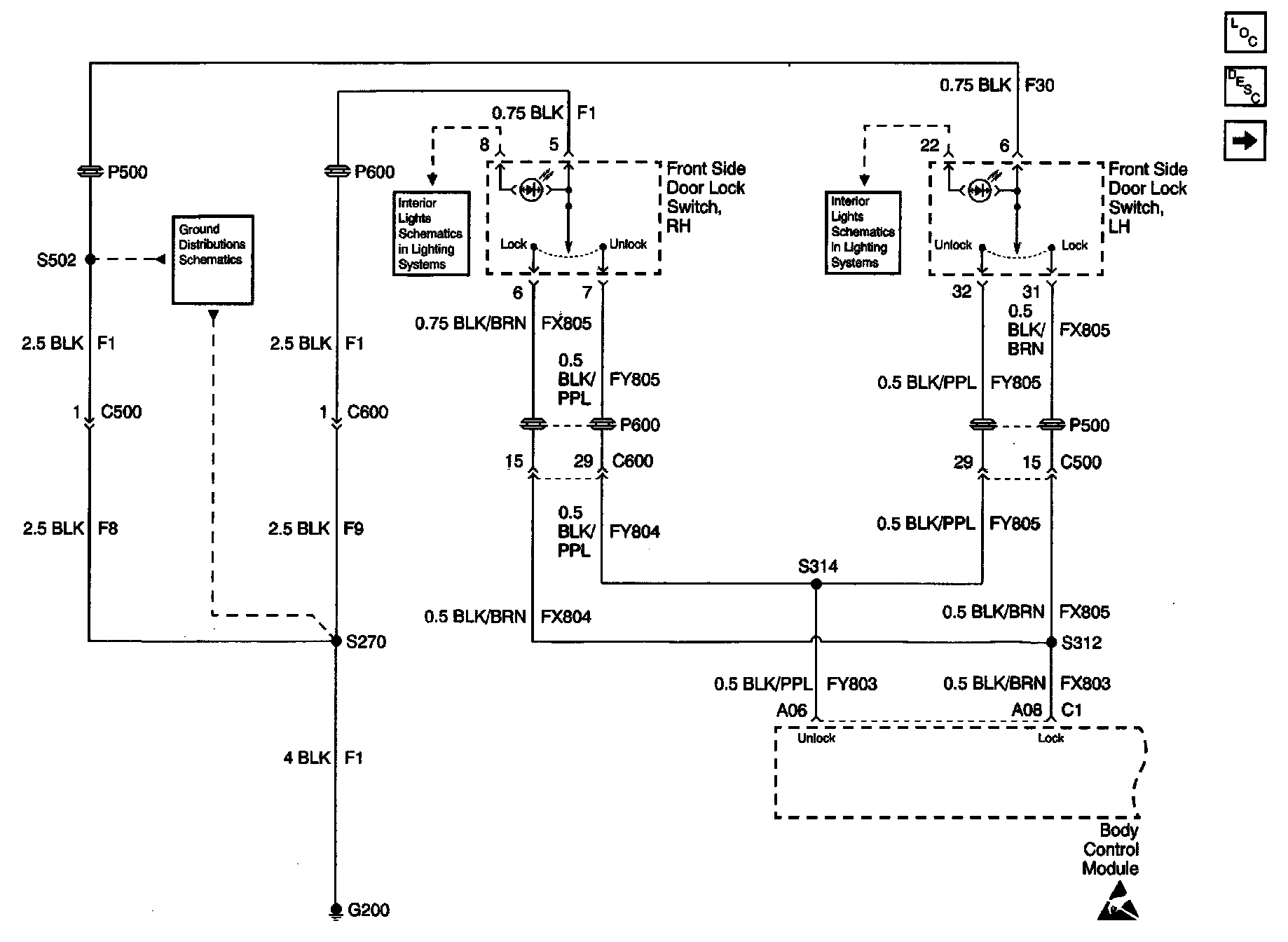

Door Lock/Indicator Schematics: LH And RH Front Side Door Lock Switches And BCM:
