Trim Panel: Service and Repair

REMOVAL PROCEDURE

CAUTION: Refer to SIR Handling Caution in Service Precautions.

1. Disable the SIR system, if equipped with the Inflatable Restraint Side Impact System. Refer to Disabling the SIR System in SIR.
2. Remove front door trim panel.
3. Remove the speaker grille.

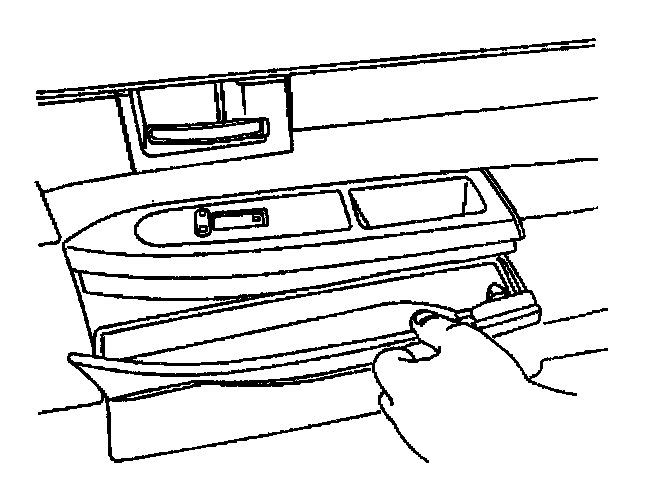

4. Unhook the tabs in the corners of the trim panel pocket.
5. Remove the pocket.

INSTALLATION PROCEDURE
1. Install the pocket while hooking the corner tabs.
2. Install the speaker grille.
3. Install front door trim panel.
4. Enable the SIR system, it equipped with the Inflatable Restraint Side Impact System. Refer to Enabling the SIR System in SIR.
