Air Deflector Housing Replacement - Rear Console

Air Deflector Housing Replacement - Rear Console

REMOVAL PROCEDURE

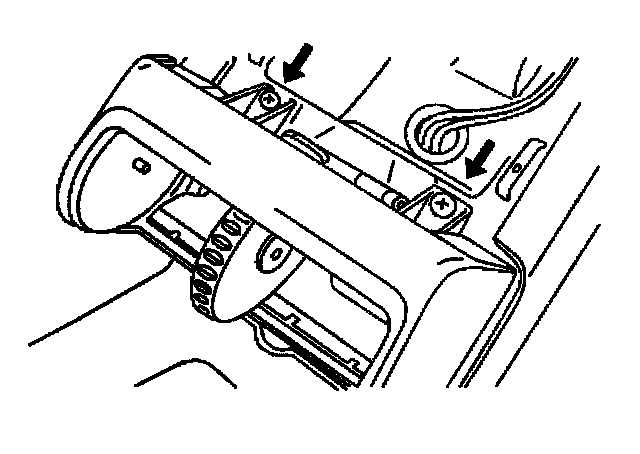

1. Remove the rear vent housing screws from the console.

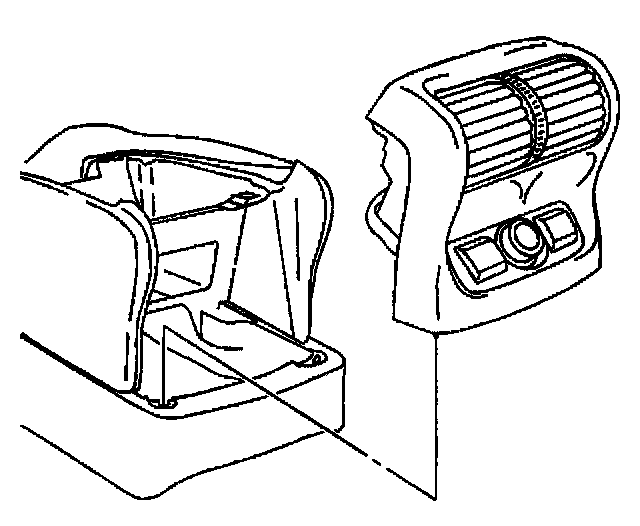

2. Remove the rear vent housing from the console.

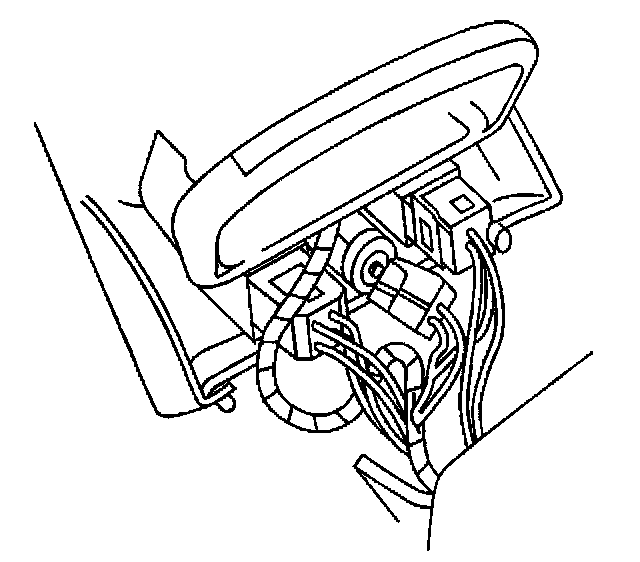

3. Remove the harness connectors from the lighter and heated seat switches.

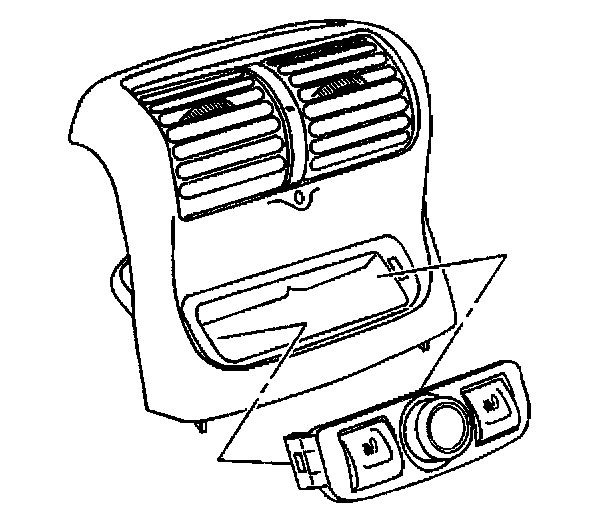

4. Remove the rear heated seat switch panel from the rear vent housing.

INSTALLATION PROCEDURE

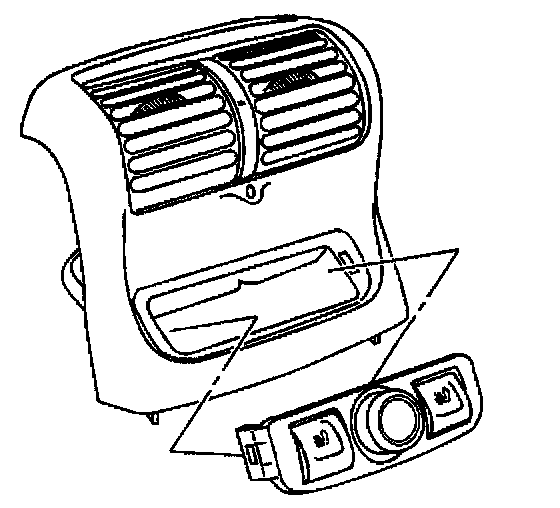

1. Install the rear heated seat switch panel to the rear vent housing.




2. Install the harness connectors to the lighter and heated seat switches.

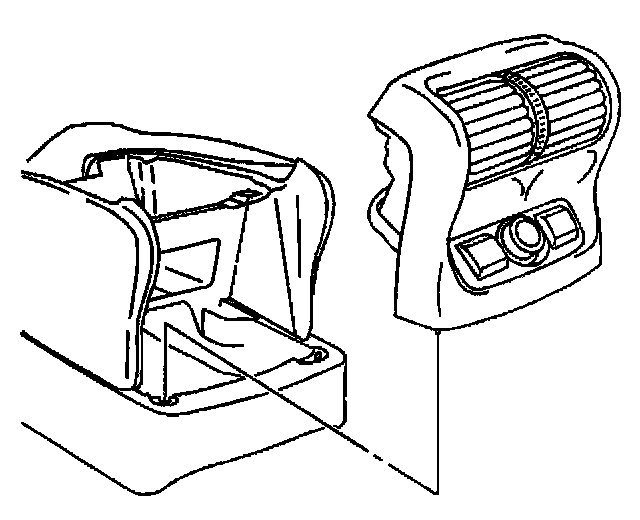

3. Install the rear vent housing to the console.




4. Install the rear vent housing screws to rear vent housing.

Tighten
Tighten the rear vent housing screws until fully seated but not stripped.
