Power Mirrors - Inoperative

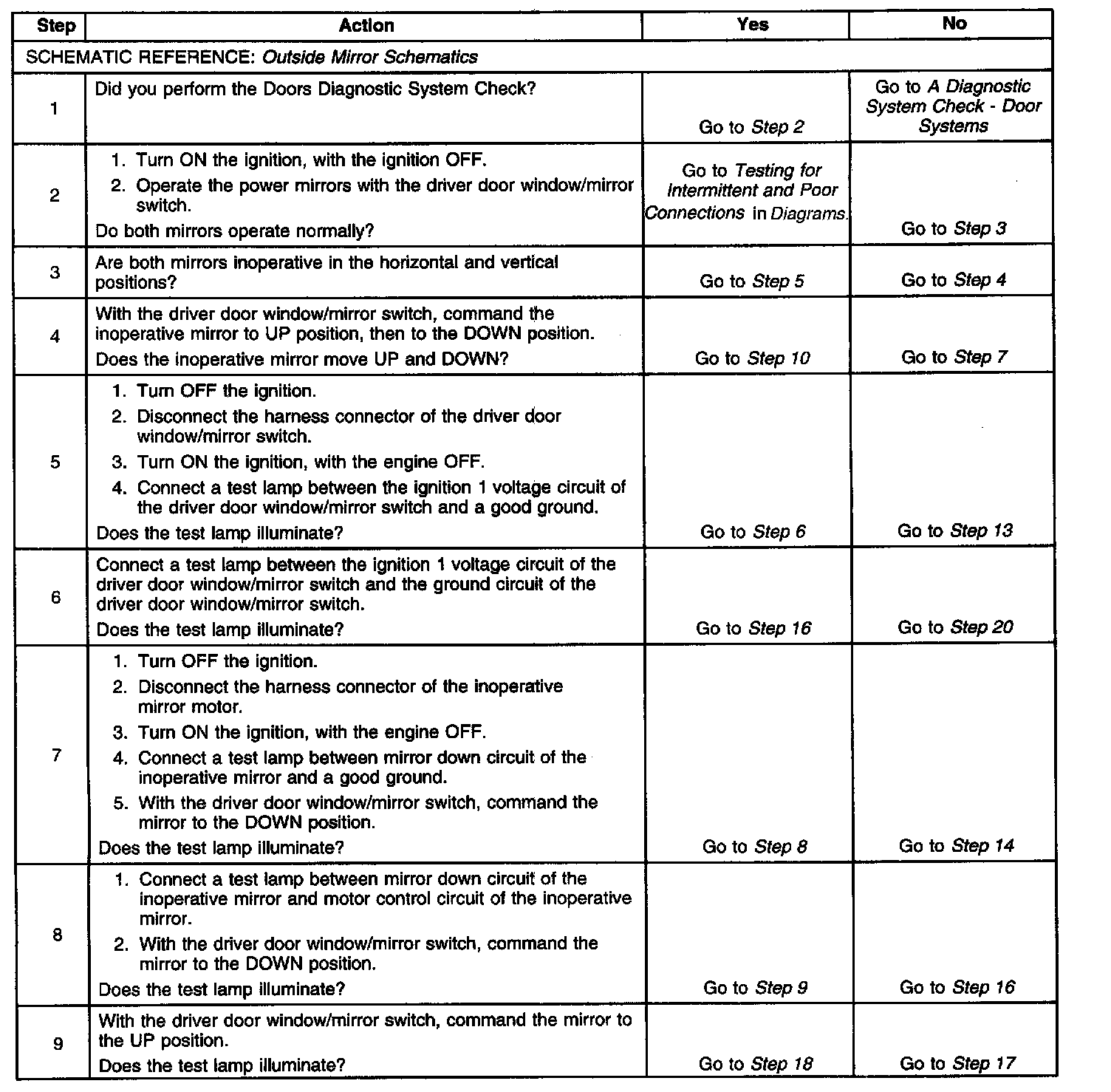

Diagnostic Chart (Part 1 Of 2):

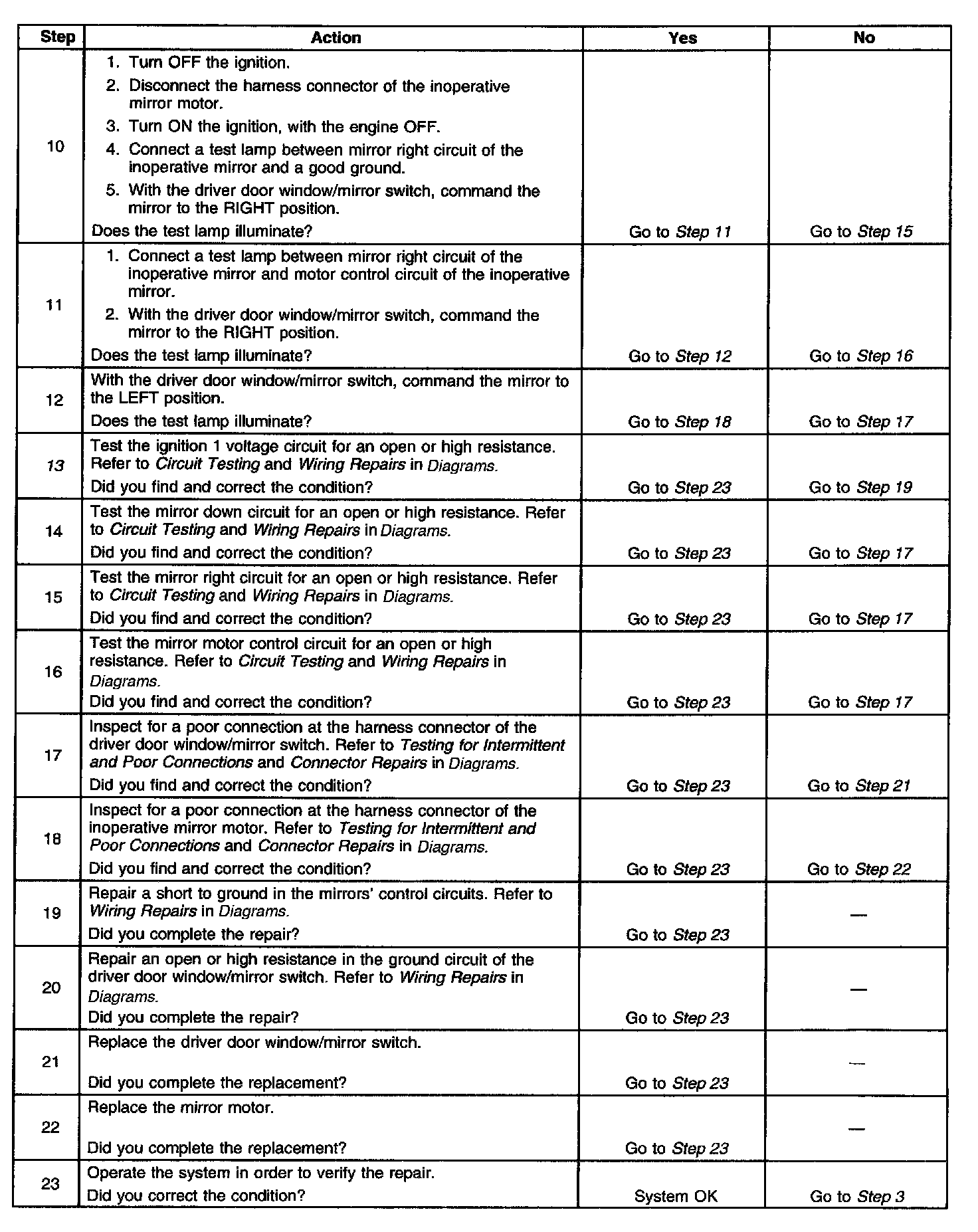

Diagnostic Chart (Part 2 Of 2):

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
13. Tests for an open or short to ground in the ignition 1 voltage circuit. If the circuit test OK, and the O/S MIRROR fuse is open. Repair a short to ground in the mirrors' control circuits. The driver door window/mirror switch may also be damaged from the short to ground and may need to be replaced.
