Front Door Handle: Service and Repair

Assist Handle and Molding Replacement - Front Door

REMOVAL PROCEDURE




1. Remove the outside rearview mirror bezel.




2. Remove the door assist handle molding.

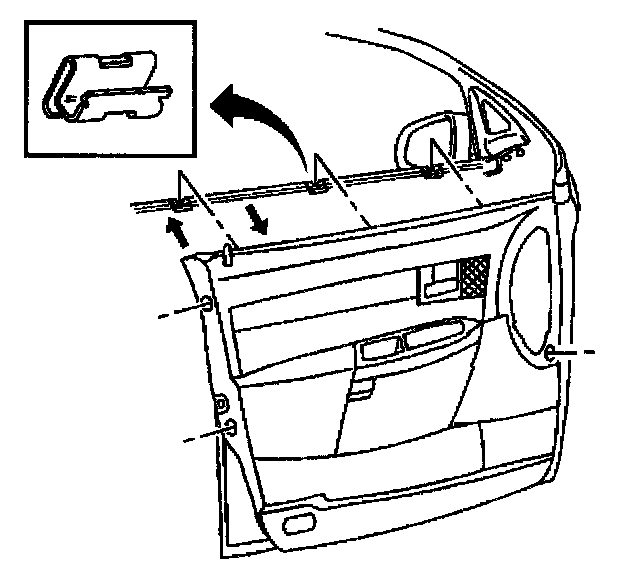

3. Remove the door panel.
4. Disconnect the actuating rod from the door latch.
5. Slide the door assist handle forward.
6. Remove the door assist handle.

INSTALLATION PROCEDURE




1. Install the door assist handle to the door.
2. Connect the actuating rod to the door latch.
3. Install the door panel.




4. Install the door assist handle molding.

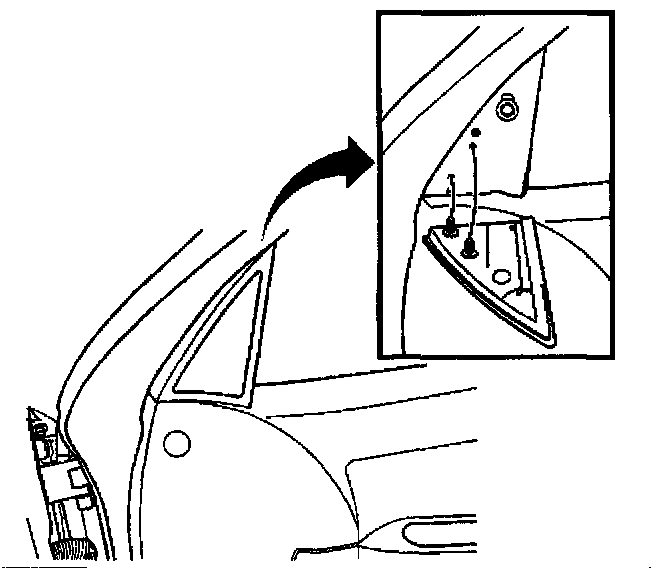

5. Install the outside rearview mirror bezel.
6. Verify the door operation.
