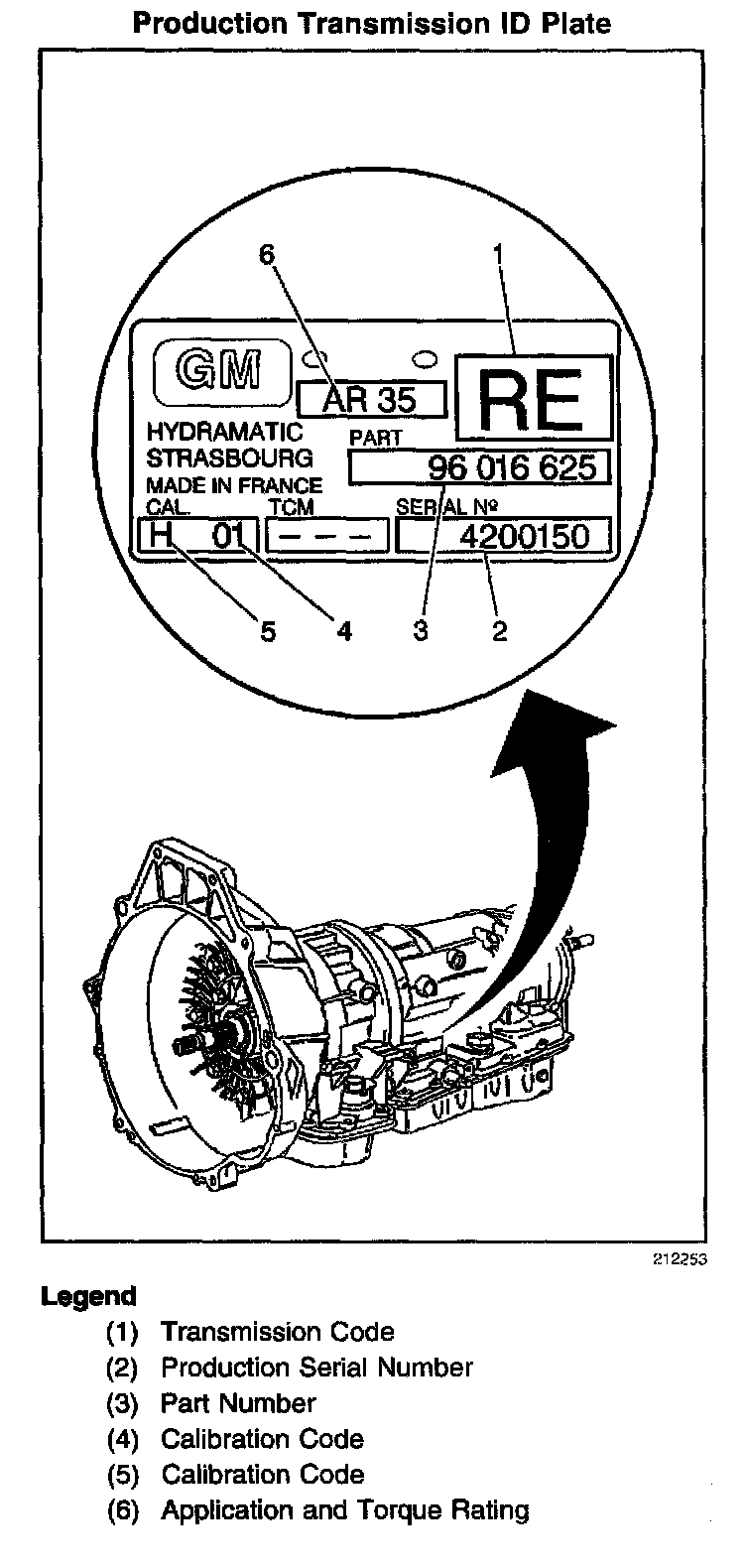

Production Transmission ID Plate

Production Transmission ID Plate:




The Hydra-Matic 4L30E automatic overdrive transmission identification plate for the production unit is located on the driver's side of the transmission near the shift selector switch.
