Speaker Replacement Rear

REMOVAL PROCEDURE




1. Remove the rear seat to rear window trim panel.

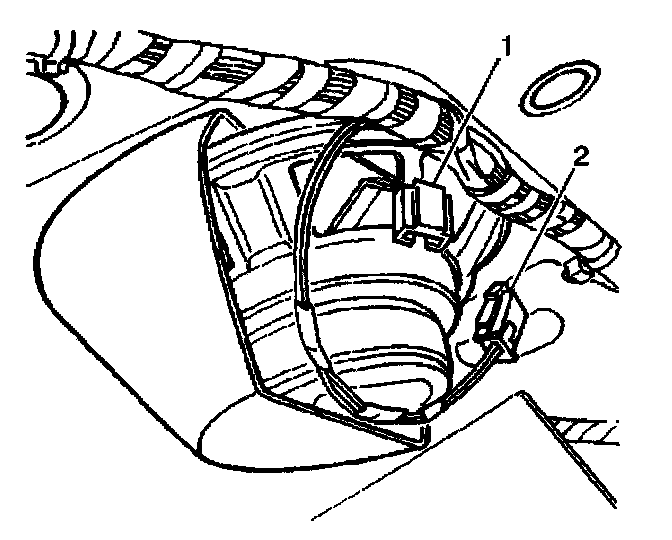

2. Disconnect the radio rear speaker connector (1)

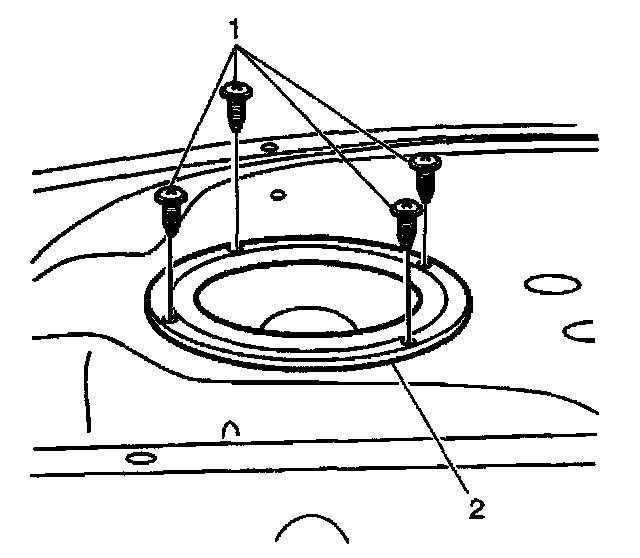

3. Remove the speaker screws (1).
4. Remove the speaker (2) with the baffle from the rear parcel shelf.

INSTALLATION PROCEDURE




1. Install the speaker (2) with the baffle at the rear parcel shelf.
2. Install the speaker screws (1) until fully seated and not stripped.




3. Connect the speaker connector (1).
4. Install the rear seat to rear window trim panel.
