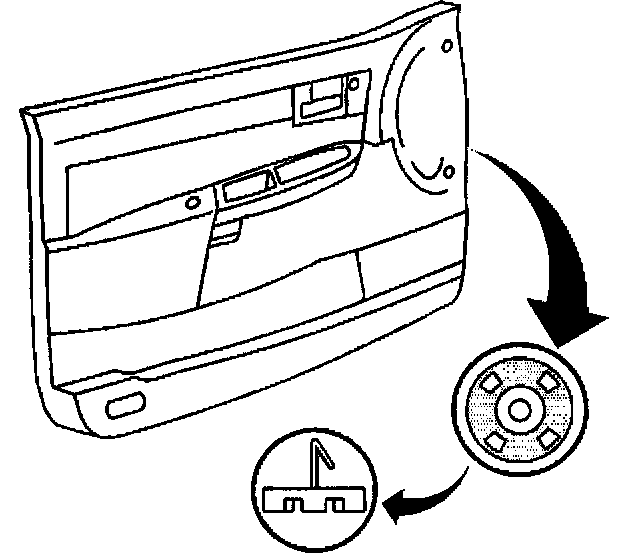

Speaker Grille Replacement (Front Door)

REMOVAL PROCEDURE
1. Disable the SIR system, if equipped with the inflatable restraint side impact system. Refer to Disabling the SIR System in SIR.
2. Remove the trim panel.
3. Remove the speaker grille clips.
4. Remove the speaker grille.

INSTALLATION PROCEDURE
1. Install the speaker grille.
2. Install the speaker grille clips.
3. Install the trim panel.
4. Enable the SIR system, if equipped with the inflatable restraint side impact system. Refer to Enabling the SIR System in SIR.
