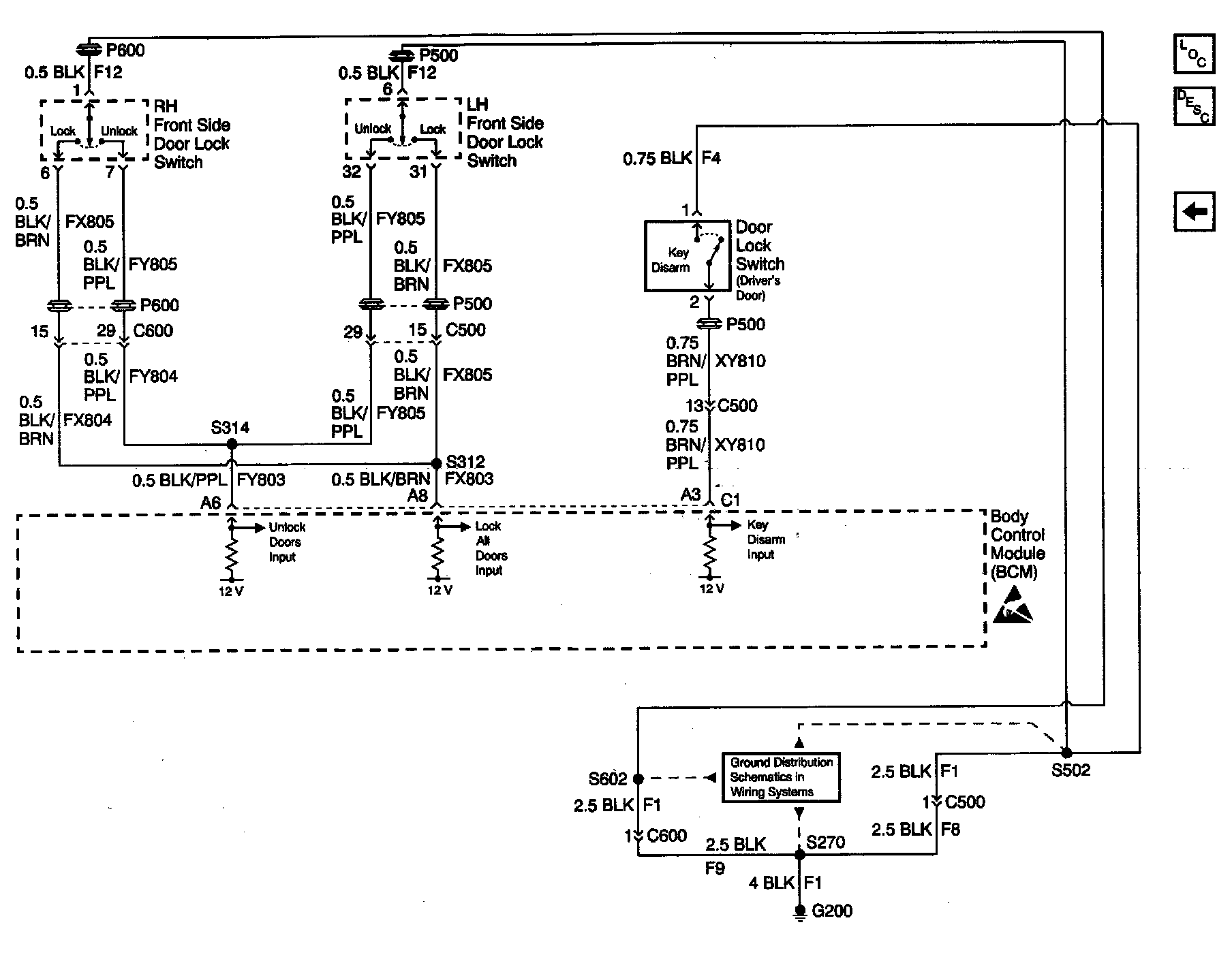

BCM, Key Disarm Switch Input and Door Lock Switches

Theft Deterrent System Schematics: CTD: BCM, Key Disarm Switch Input And Door Lock Switches:
