Home >> Cadillac >> 2000 >> Catera V6-3.0L VIN R >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Diagrams >> Electrical Diagrams >> Theft Deterrent System Schematics >> CTD >> BCM, Horn Relay, and Security Indicator Controls

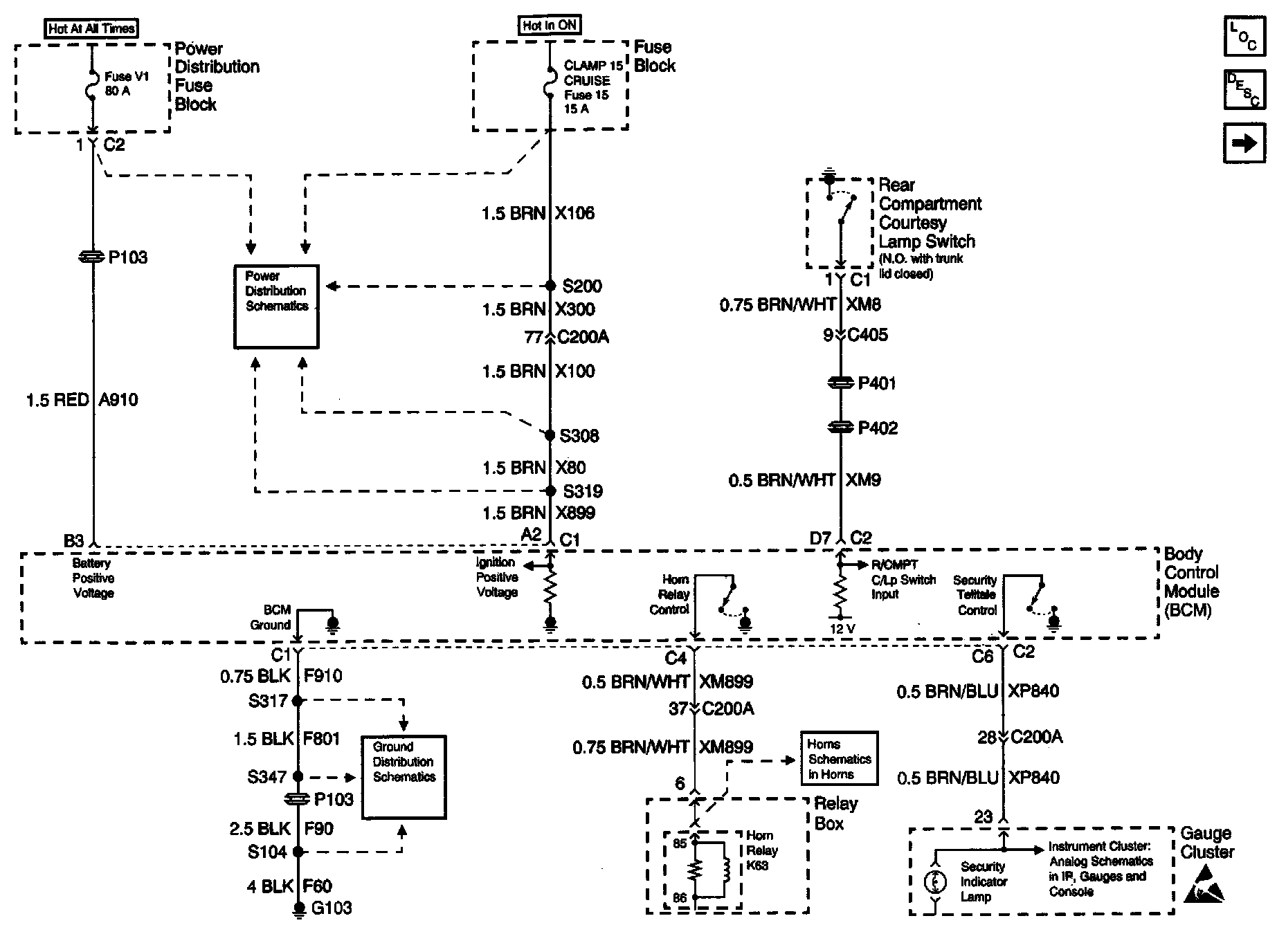

BCM, Horn Relay, and Security Indicator Controls

Theft Deterrent System Schematics: CTD: BCM, Horn Relay, And Security Indicator Controls:
