Antenna Amplifier: Service and Repair

Antenna Amplifier Replacement

REMOVAL PROCEDURE




1. Remove the rear seat to rear window trim panel.

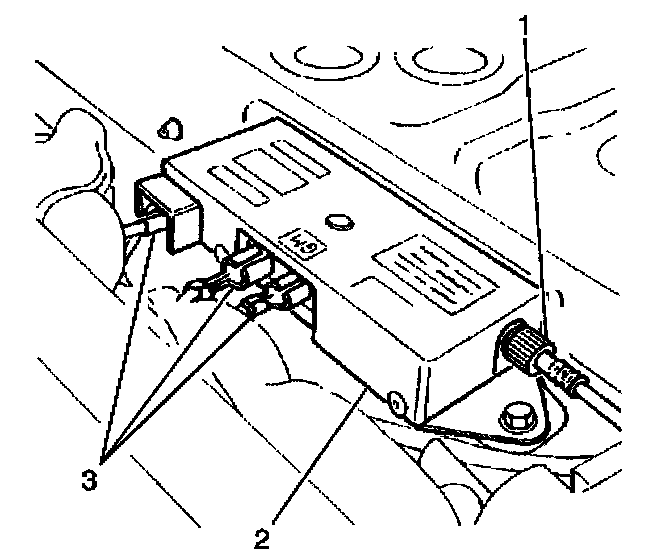

2. Remove the radio antenna amplifier cable (1).
3. Disconnect the amplifier connectors (3).

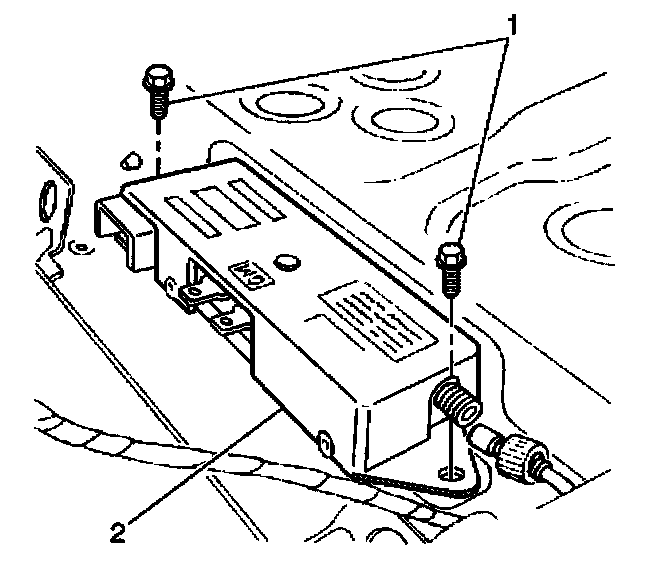

4. Remove the amplifier bolts (1).
5. Remove the amplifier (2) from the rear parcel shelf.

INSTALLATION PROCEDURE




1. Install the amplifier (2).
2. Install the amplifier bolts (1) until fully seated and not stripped.




3. Connect the amplifier connectors (3).
4. Install the amplifier cable (1).
5. Install the rear seat to rear window trim panel.
