P1792

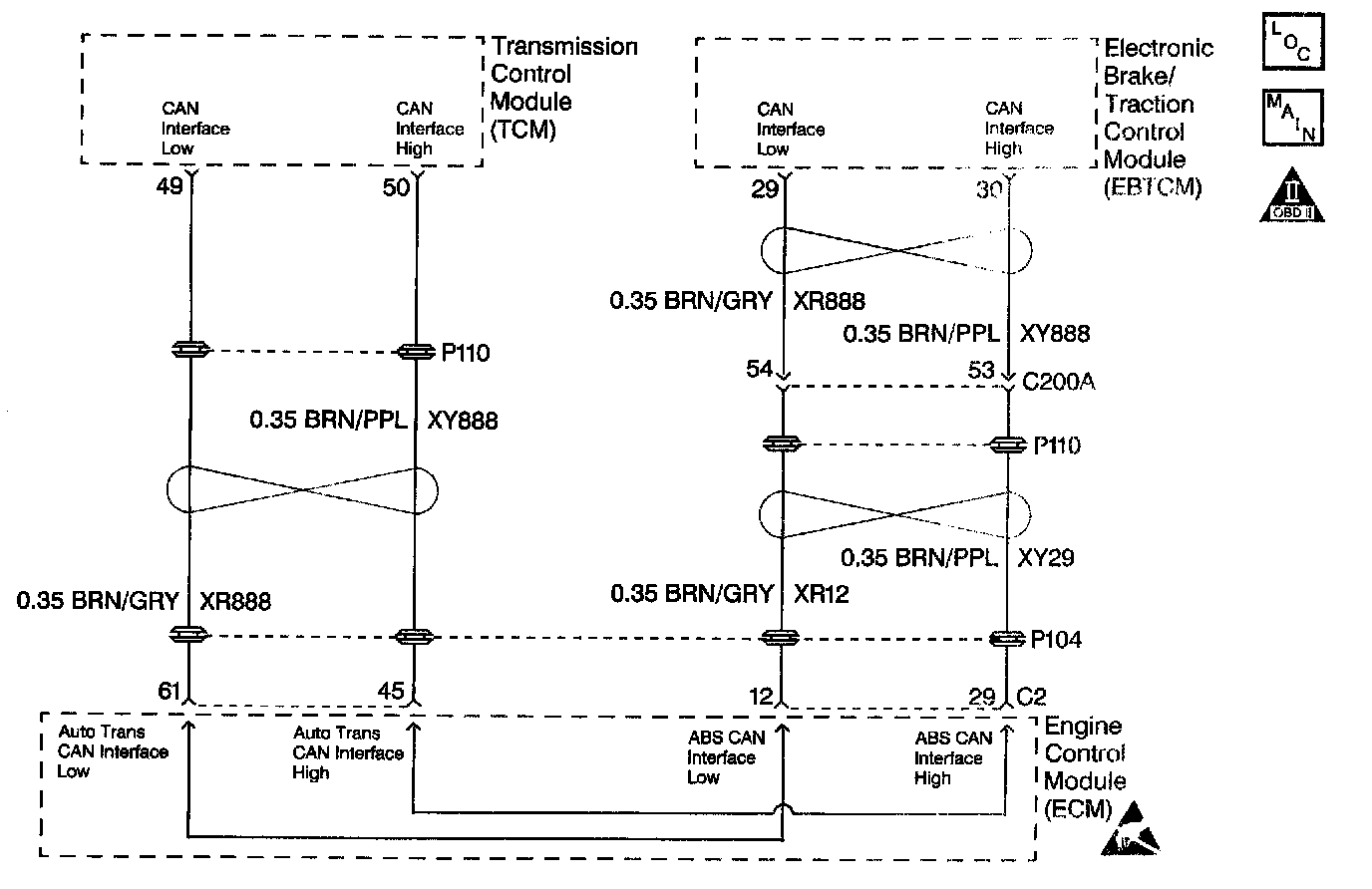

Schematic:

Circuit Description with 4L30-E Automatic Transmission
Engine temperature information (signal) is sent to the Transmission Control Module (TCM) by the Engine Control Module (ECM) through a communication network called the Controller Area Network (CAN). Circuits XR888 and XY888 are used to communicate CAN data between the ECM and TCM control modules.

When the ECM sends the TCM an engine coolant temperature signal that is below the lower limit, above the upper limit, or is an unreliable value, then DTC P1792 will set. DTC P1792 is a type C DTC.

CONDITION FOR RUNNING THE DTC
The ignition switch is in the RUN position.

CONDITION FOR SETTING THE DTC
Engine coolant signal is below the lower limit, above the upper limit, or is an unreliable value.

ACTION TAKEN WHEN THE DTC SETS
^ The MIL will not illuminate.
^ The ECM records the operating conditions in the failure records at the time of the request from the TCM.
^ The TCM memory stores the DTC at the time of the first failure.

CONDITIONS FOR CLEARING THE DTC
^ A History DTC clears after forty consecutive warm-up cycles, if no failures are present by this diagnostic or any other emission related diagnostic.
^ The scan tool clears the DTC.

DIAGNOSTIC AIDS
Use the J 35616-A connector lest adapter kit for any test that requires probing the TCM harness connector or a component harness connector. Using this kit will prevent damage to the harness connector terminals.

Check for the following conditions:
^ Poor connections at the TCM or at the component. Inspect the harness connectors for any backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
Refer to General Electrical Diagnosis Procedures in Diagrams for proper procedure.
^ Damaged harness. Inspect the wiring harness for damage. If the harness appears to be OK, observe the scan tool while moving any related connectors and any wiring harnesses. A change in the display may help to locate the fault.

TEST DESCRIPTION

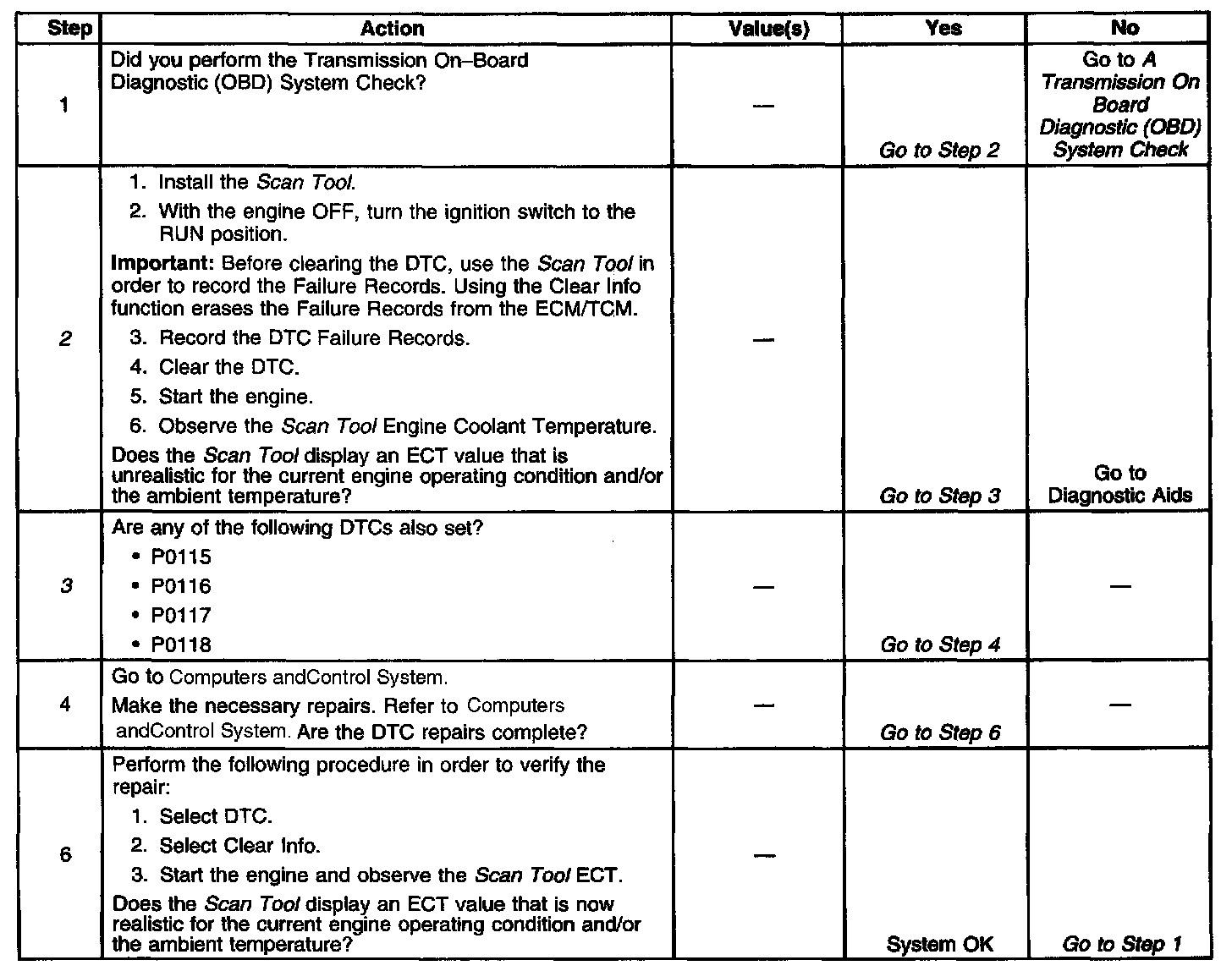

Diagnostic Chart:

The numbers below refer to the step numbers on the diagnostic table.
2. This step verifies the ECT is present
3. This step checks for engine DTCs that would normally set if engine coolant conditions were detected by the ECM.
