P1271

Schematic:

Engine Controls Schematics: Accelerator Pedal Position (APP) Sensor:

CIRCUIT DESCRIPTION
The Accelerator Pedal Position (APP) sensor is made up of 2 sensors that are housed inside one assembly. The APP sensor is located on a bracket above the accelerator pedal. The Engine Control Module (ECM)supplies a separate 5 voltreference and the ground circuit for each of the sensors. The 5 voltreference for APP sensor 1 is supplied from the same source in the ECM as the 5 volt reference for the mass air flow sensor and the fuel tank pressure sensor. The 5 voltreference for APP sensor 2 is supplied from the same source in the ECM as the 5 volt reference for the throttle position sensors. The 5 volt reference voltage for all of the sensors is supplied on separate ECM terminals, but the terminals are connected internally to the shared voltage supply. The APP sensor sends a signal from each of the sensors to the ECM indicating the acceleration demand of the driver. The ECM actuates the throttle plates based on this information.

The APP sensor 1 signal voltage increases as the throttle opens, from about 0.4 volt at closed throttle to above 3.5 volts at wide open throttle. The APP sensor 2 signal voltage also increases as the throttle opens, but at a slightly different rate. The APP sensor 2 signal voltage increases from about 0.2 volt at closed throttle to about 1.8 volts at wide open throttle. The APP sensor 1 is the main control of the system. The APP sensor 2 is used for comparison of the APP sensor 1. The ECM constantly monitors these two sensors and if the sensors are not within a calibrated value, a Diagnostic Trouble Code (DTC) will set.

CONDITIONS FOR RUNNING THE DTC
^ The battery voltage is more than 7 volts.
^ The accelerator pedal is leaving the idle position.

CONDITIONS FOR SETTING THE DTC
The voltage difference between APP sensor 1 and APP sensor 2 is not correct when leaving idle.

ACTION TAKEN WHEN THE DTC SETS
The ECM illuminates the Malfunction Indicator Lamp (MIL) and records the operating conditions in the Freeze Frame on the first drive trip that the diagnostic runs and fails.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The ECM turns OFF the MIL after 3 consecutive drive trips that the diagnostic runs and does not fail.
^ A History DTC clears after 40 consecutive warm up cycles in which no failures are reported by this diagnostic or any other emission related diagnostic.
^ The scan tool clears the MIL/DTC.

DIAGNOSTIC AIDS
The ECM compares the signal of each of the accelerator pedal position sensor to each other throughout the entire range of operation. Clear the DTCs and actuate the throttle through the entire range with the ignition ON and the engine OFF.

Use the J 35616-A connector test adapter kit for any test that requires probing the ECM harness connector or a component harness connector. Using this kit will prevent damage to the harness connector terminals.

Inspect the APP sensor mounting bolts and actuator arm. The bolts should be tight. If the APP sensor is loose, a false reading could be sent to the ECM. Refer to Testing for Intermittent and Poor Connections in Diagrams for Intermittent conditions.

TEST DESCRIPTION

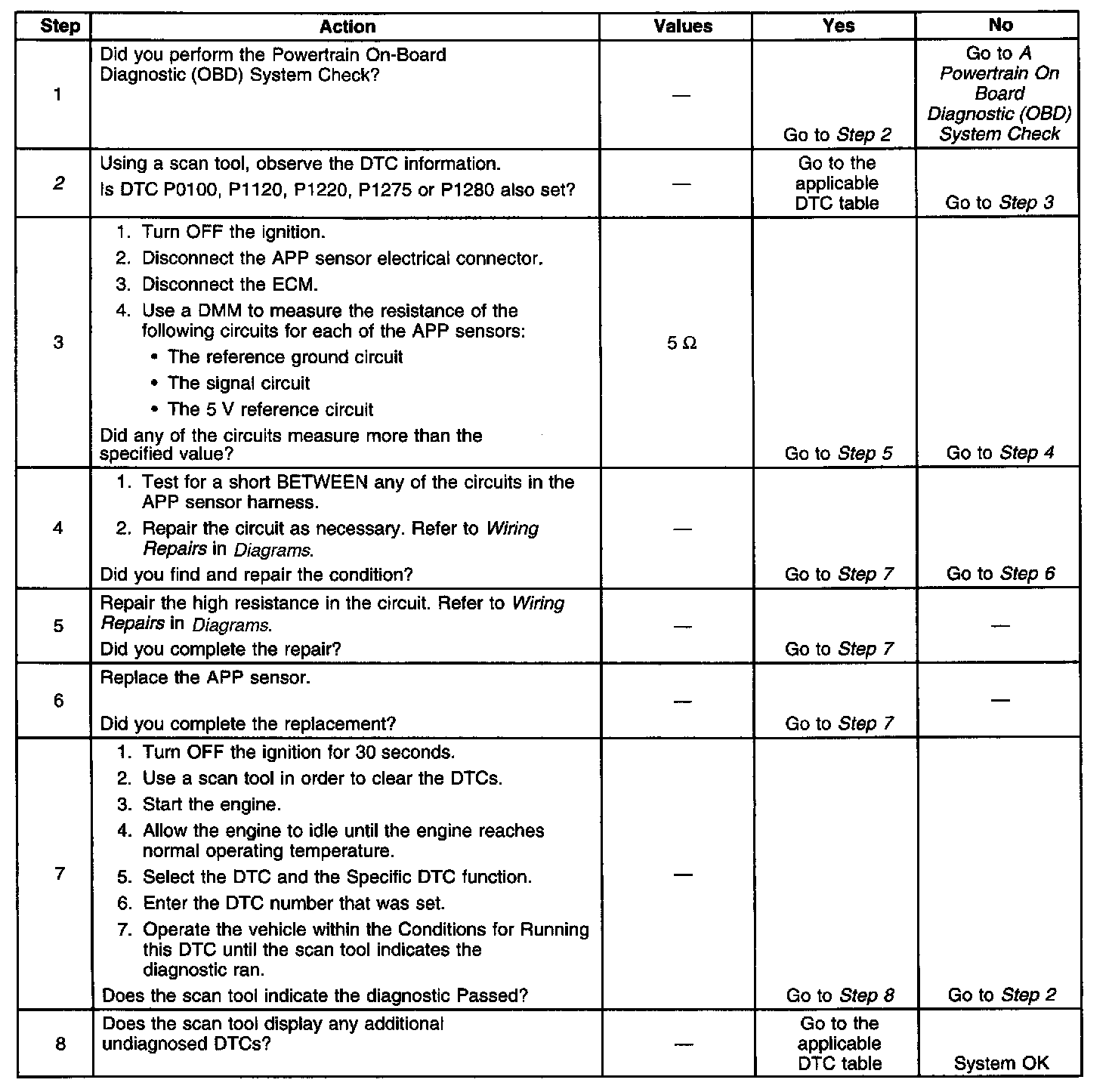

Diagnostic Chart:

The numbers below refer to the step numbers on the diagnostic table.
2. Any circuit faults on either APP sensor 1 or 2 will set one of the DTCs listed. Refer to the appropriate table for diagnosis.
