P0722

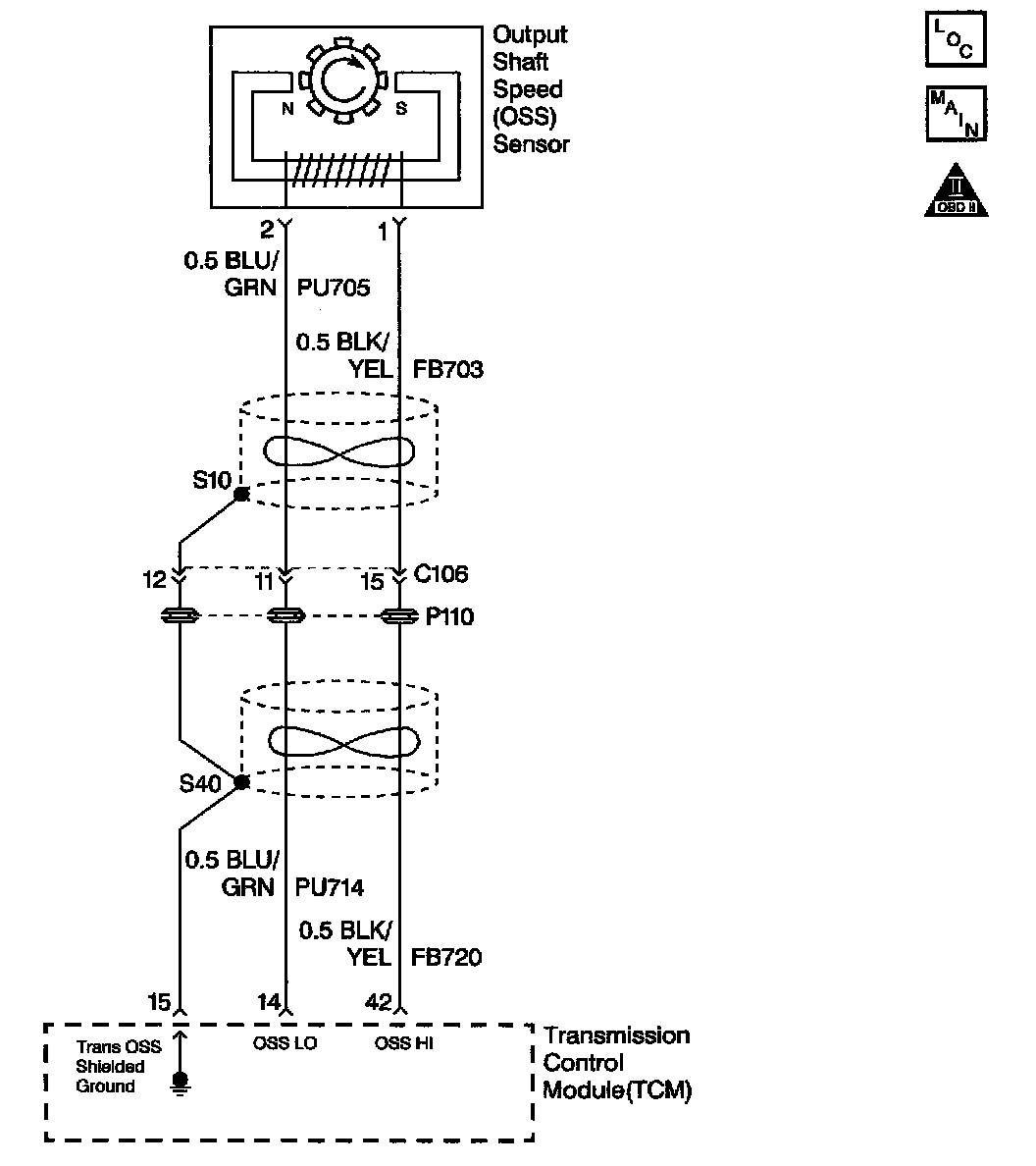

Schematic:

Circuit Description with 4L30-E Automatic Transmission
The vehicle speed sensor assembly (VSS assembly) provides vehicle speed information to the Transmission Control Module (TCM). The VSS assembly is a Permanent Magnet (PM) generator consisting of a toothed rotor mounted on the output shaft and the VSS. The PM generator produces a pulsing AC voltage as the rotor teeth pass through the sensor's magnetic field. The AC voltage level and the number of pulses increase as the speed of the vehicle increases. The TCM converts the pulsing voltage to vehicle speed. The TCM uses the vehicle speed signal to determine shift timing and Torque Converter Clutch (TCC) scheduling.

If the TCM detects no vehicle speed when there is engine speed in a drive gear range, then DTC P0722 sets. DTC P0722 is a type B DTC.

The title of this DTC contains a generic part name. The specific part the title refers to is named the Vehicle Speed Sensor.

CONDITIONS FOR RUNNING THE DTC
^ The transmission is not in Park, Reverse or Neutral.
^ The engine speed is greater than 3008 RPM.

CONDITION FOR SETTING THE DTC
The transmission output speed is 0 RPM.

ACTION TAKEN WHEN THE DTC SETS
^ The TCM flashes the sport mode lamp and sends a MIL request to the ECM on the second consecutive drive trip that the diagnostic runs and fails. The ECM then illuminates the MIL.
^ The ECM records the operating conditions in the Freeze Frame at the time of the MIL request from the TCM.
^ The transmission operates in the default mode (maximum line pressure, command 4th gear, inhibit TCC, freeze shift adapts).

CONDITIONS FOR CLEARING THE MIL/DTC
^ The ECM turns off the MIL after three consecutive drive trips during which the TCM sends no MIL request.
^ A History DTC clears after forty consecutive warm-up cycles, if no failures are present by this diagnostic or any other emission related diagnostic.
^ The scan tool clears the MIL/DTC.
^ The TCM cancels the DTC default mode actions when the ignition switch is Off long enough in order to power down the TCM.

DIAGNOSTIC AIDS
Use the J 35616-A connector test adapter kit for any test that requires probing the TCM harness connector or a component harness connector. Using this kit will prevent damage to the harness connector terminals.

Check for the following conditions:
^ Poor connections at the TCM or at the component Inspect the harness connectors for any backed out terminals, improper mating, broken locks, improperly formed or damaged terminals, and poor terminal to wire connection.
Refer to General Electrical Diagnosis Procedures in Diagrams for proper procedure.
^ Damaged harness. Inspect the wiring harness for damage. If the harness appears to be OK, observe the scan tool while moving any related connectors and any wiring harnesses. A change in the display may help to locate the fault.

TEST DESCRIPTION

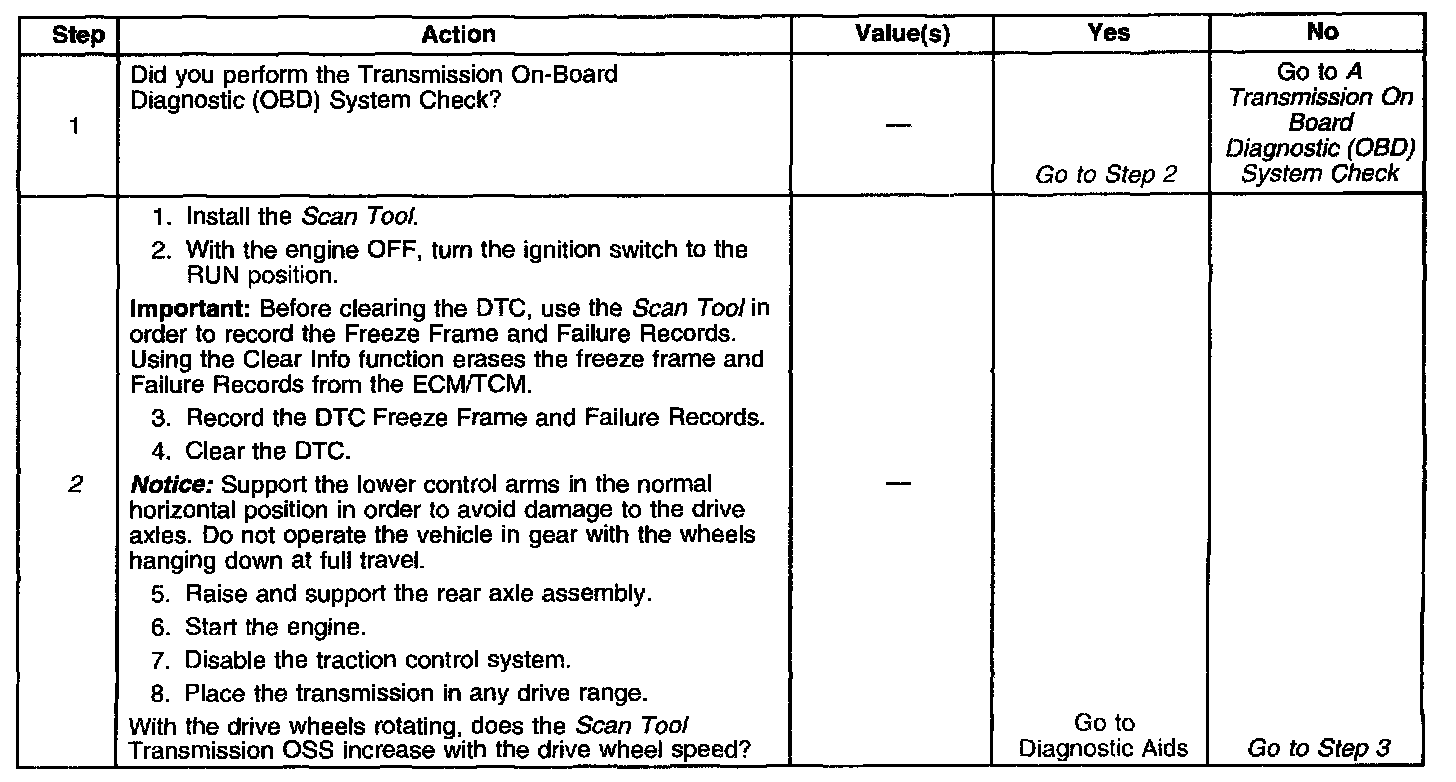

Steps 1 - 2:

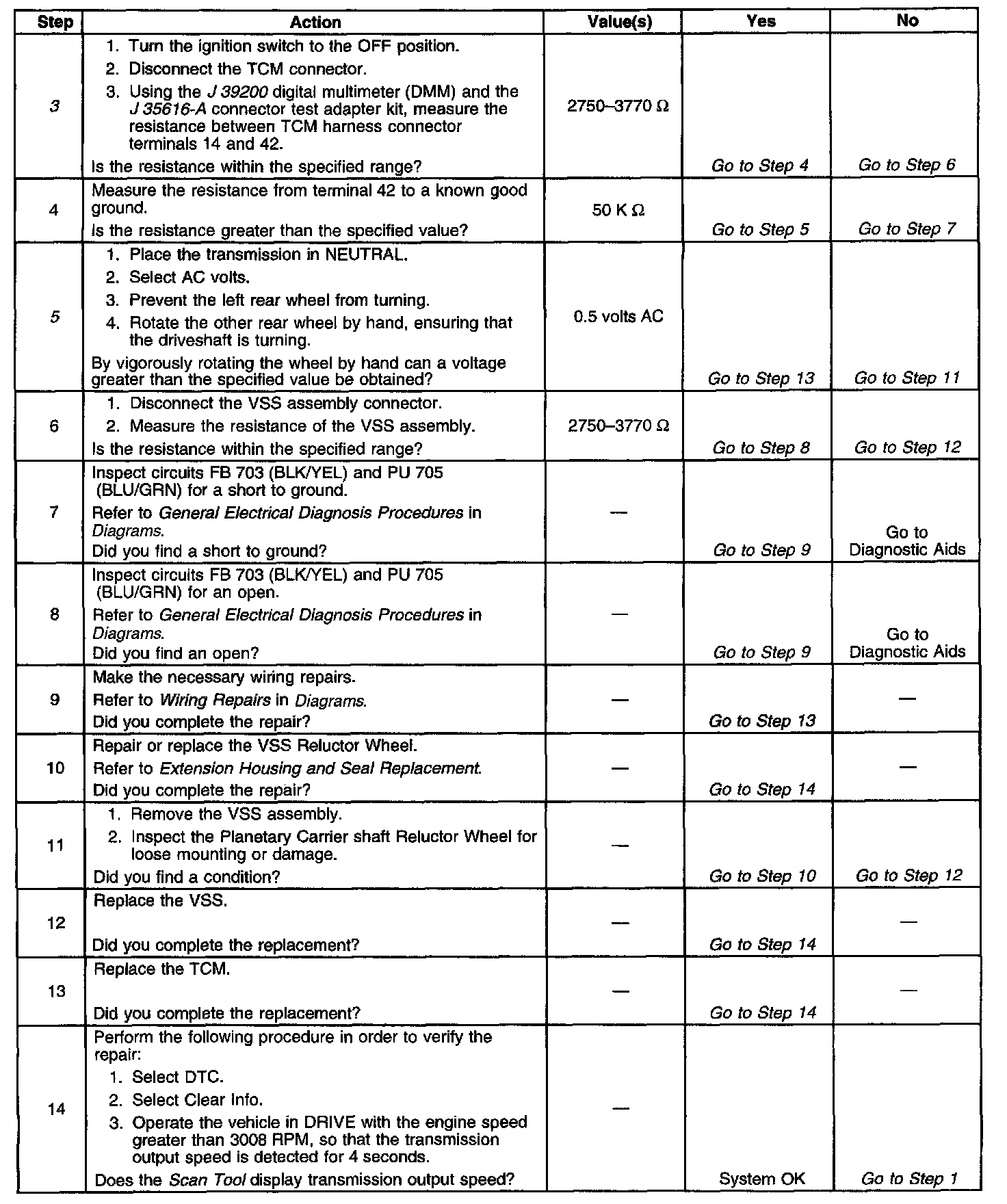

Steps 3 - 14:

The numbers below refer to the step numbers on the diagnostic table.
2. Disable the traction control system when performing this step.
3. This step tests the VSS assembly circuit.
5. This step tests the integrity of the VSS assembly.
