DTC 168

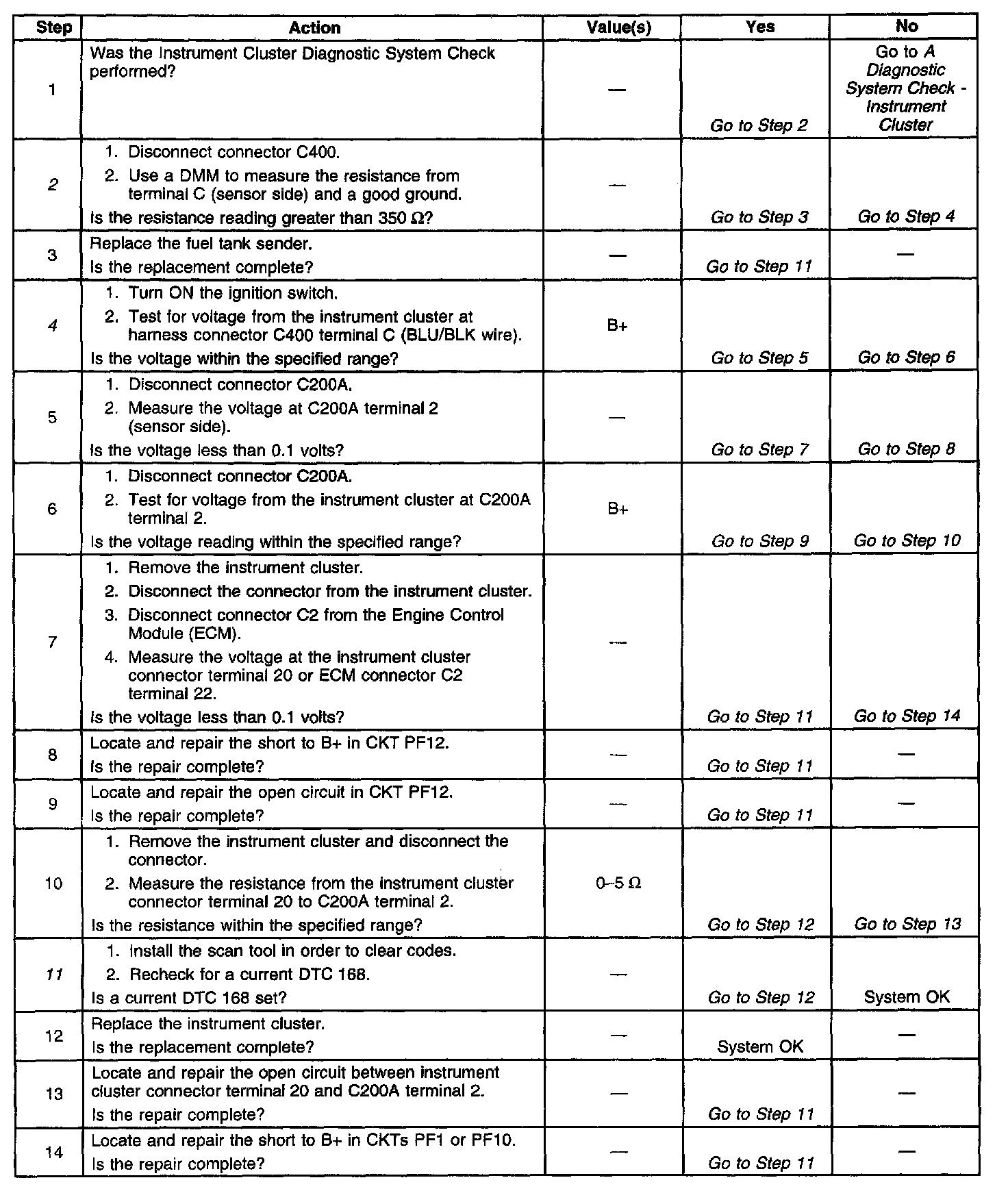

Diagnostic Chart:

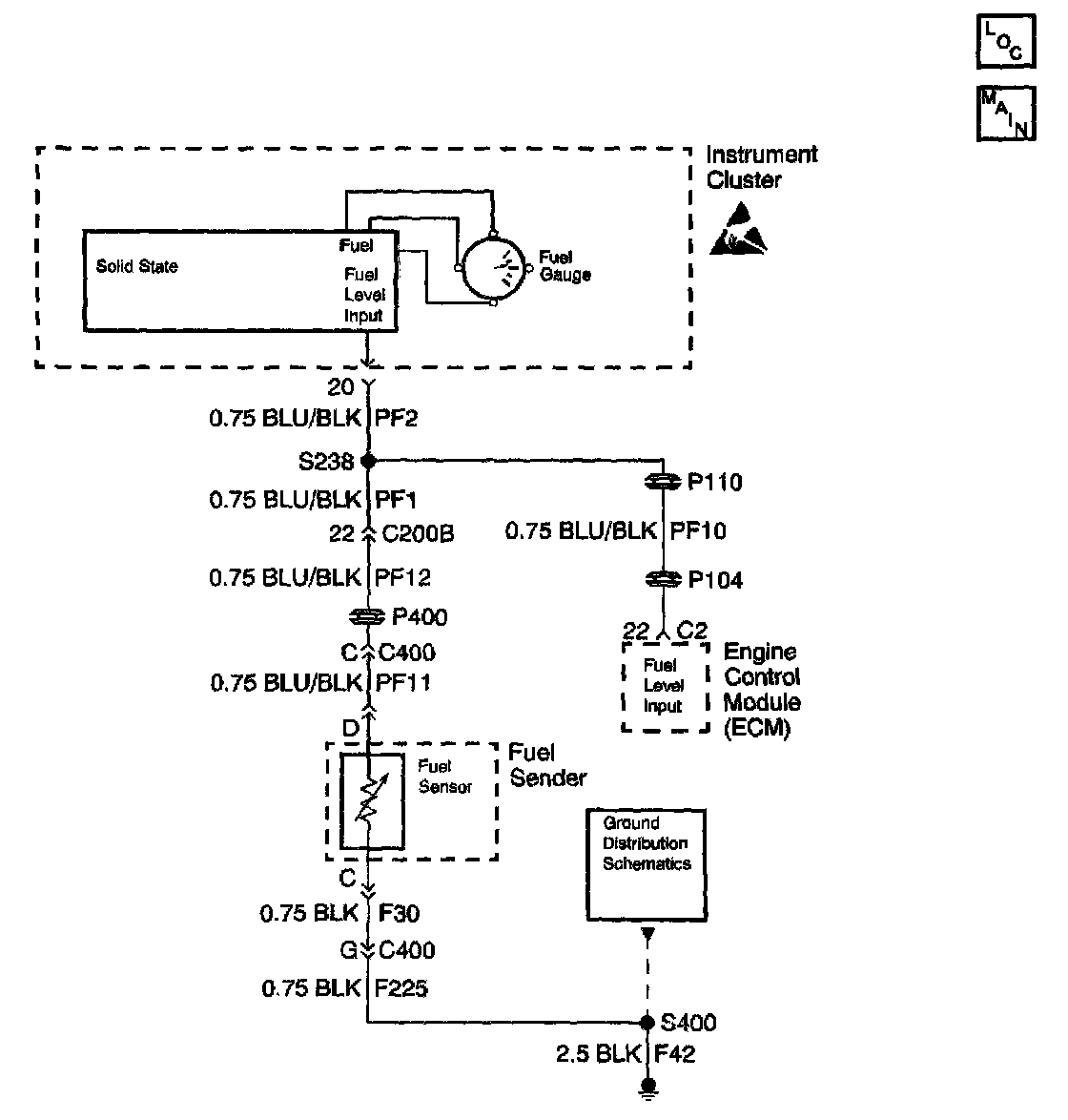

Schematic:




CIRCUIT DESCRIPTION
A microprocessor in the instrument cluster sends voltage to the fuel tank sensor contained inside the fuel tank. A float arm attached to the sensor changes position with the fuel level in the tank. The fuel sensor is a variable resistor, as the fuel level changes the resistance of the fuel sensor changes. The instrument cluster monitors changes in the voltage caused by the changes in the resistance of the sensor to determine fuel level.

CONDITIONS FOR SETTING THE DTC
The fuel gauge circuit is tested every 100 ms. DTC 168 will set in the following ways:
^ When the circuit is open.
^ Shorted to battery
^ The resistance of the fuel sensor is out of range (more than 350 ohms) for more than 8 seconds.

ACTION TAKEN WHEN THE DTC SETS
^ Stores a DTC 168 in memory.
^ The fuel gauge pointer will return to the zero position.

CONDITIONS FOR CLEARING THE MIL/DTC
^ The resistance must be greater than 350 ohms for 4 seconds to clear the fault in the next monitoring cycle.
^ Conditions for the fault are no longer present.
^ Using a scan tool

DIAGNOSTIC AIDS
^ If the DTC is a history or intermittent DTC try performing the tests shown while moving related wiring harnesses and connectors. This can often cause the malfunction to appear. Refer to Inducing Intermittent Fault Conditions in Diagrams, Diagnostic Aids, Troubleshooting Tools.
^ Visually inspect the harness and harness connectors for the following conditions:
^ Damage
^ Corrosion
^ Water intrusion
^ Adequate terminal tension
^ Mis-routed harness
^ Rubbed through wire insulation
^ Broken wire inside the insulation
^ Before replacing the instrument cluster check all power and ground circuits to the cluster.

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
2. This test determines if the fuel tank sensor has high resistance.
4. This test determines if system voltage is present. No voltage may indicate an open circuit.
11. After a circuit repair is made, the system is checked again to see if the DTC resets. If the DTC resets, the instrument cluster most likely has an internal failure.
