HVAC System

CIRCUIT DESCRIPTION
DTC 55 is an internal control unit hardware failure (RAM, ROM defective) in the heater and A/C control.

CONDITIONS FOR SETTING THE DTC
^ The heater and A/C control detects an internal hardware malfunction.
^ The heater and A/C control checks the hardware on a continuous basis every 200 ms.

ACTION TAKEN WHEN THE DTC SETS
^ Stores a DTC 55 in the controllers memory.
^ Disables all heater and A/C control functions.

CONDITIONS FOR CLEARING THE DTC
^ The condition for the fault is no longer present.
^ The use of a scan tool.
^ A history DTC will clear after 20 consecutive ignition cycles if the condition for the fault is no longer present.

TEST DESCRIPTION

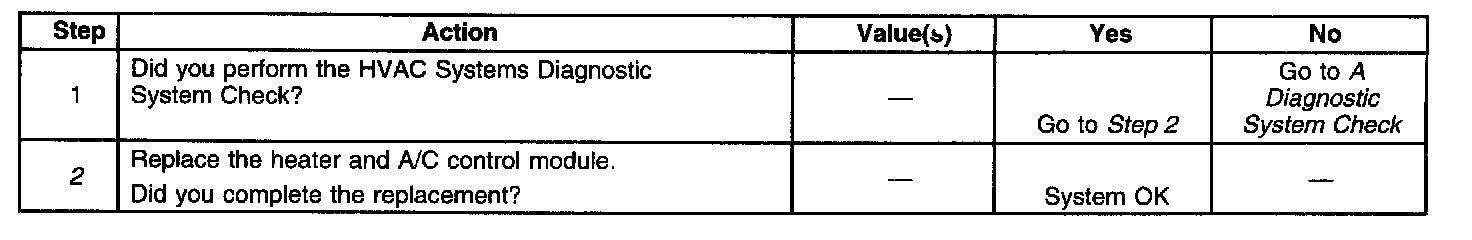

Steps 1-2:

The number(s) below refer to the step number(s) on the diagnostic table.
2. The hardware for the controller is internal and cannot be replaced. The repair procedure is to replace the heater and A/C control module.
