Seats

Diagnostic Chart:

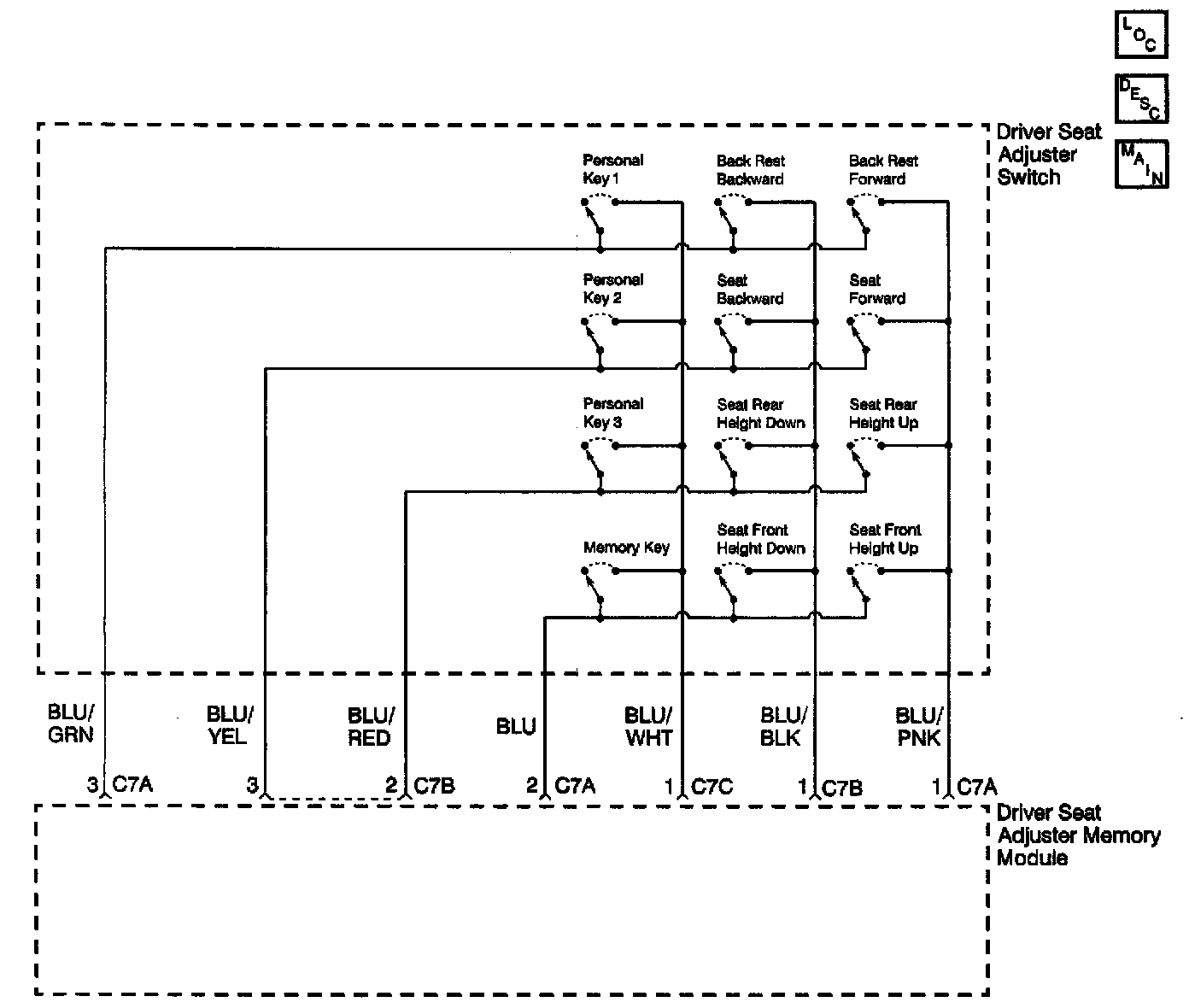

Schematic:

CIRCUIT DESCRIPTION
The memory seat module monitors the resistance through the seat adjuster switch. Switch inputs to the memory seat module are determined by continuity through a combination of seat adjuster switch circuits. seat adjuster switch circuits are shared among individual switches, this limits the ability of the memory seat module to interpret simultaneous switch inputs.

CONDITIONS FOR SETTING THE DTC
DTC 21 will set if:
^ One or more of the seat adjuster switches are shorted or jammed or its circuits are faulty.
^ The memory seat module is faulty.

ACTION TAKEN WHEN THE DTC SETS
DTC 21 will set and the power seat functions will be disabled.

CONDITIONS FOR CLEARING THE DTC
DTC 21 will clear when the fault is no longer present.

DIAGNOSTIC AIDS
^ Inspect the seat adjuster switch operation or for any type of physical damage.
^ Inspect the switch connector to the memory seat module for damage.

TEST DESCRIPTION
The following numbers refer to the step numbers on the diagnostic table:

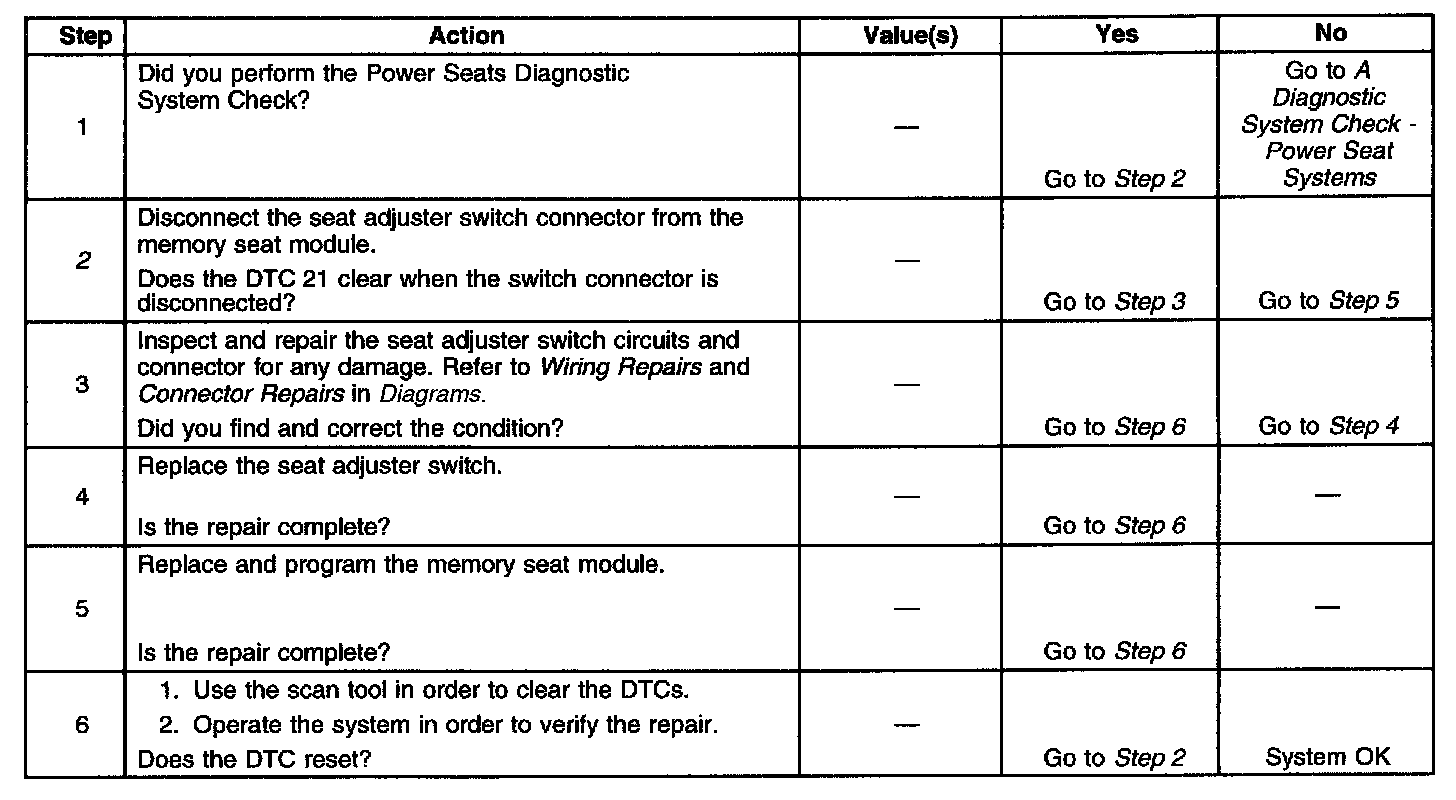

2. This step tests for a short or stuck switch contacts in the seat adjuster switch.
