DTC 005
Circuit DescriptionWhen the Automatic Level Control (ALC) sensor detects an out of trim condition, the auto level control relay K19 energizes to provide B+ to the auto level control air compressor. The automatic ALC sensor continuously monitors the controlling circuitry to determine if there is B+ present for a compress sequence or an Air Replenishment Cycle (ARC).
Conditions for Setting the DTC
The sensor detects that the relay output is not pulled down to ground when the sensor output is active.
Action Taken When the DTC Sets
^ The LEVELING indicator lamp flashes.
^ The sensor's discrete low side output drive for the relay is disabled.
^ The sensor continuously attempts to recover from the fault
Conditions for Clearing the DTC
^ A current DTC becomes history when conditions for the fault are no longer present and the ignition cycles from OFF to ON.
^ A history DTC will clear after 20 ignition cycles.
^ Using a scan tool.
Diagnostic Aids
Check for the following conditions if a history or intermittent DTC is indicated:
^ A damaged wiring harness. Inspect the wiring harness for damage. If the wiring harness appears to be in good condition, observe the display on the DMM while moving the connectors and wiring harnesses related to the circuits. A change in the DMM display during this test will indicate the location of the fault.
^ For additional information, refer to Testing for Intermittent and Poor Connections.

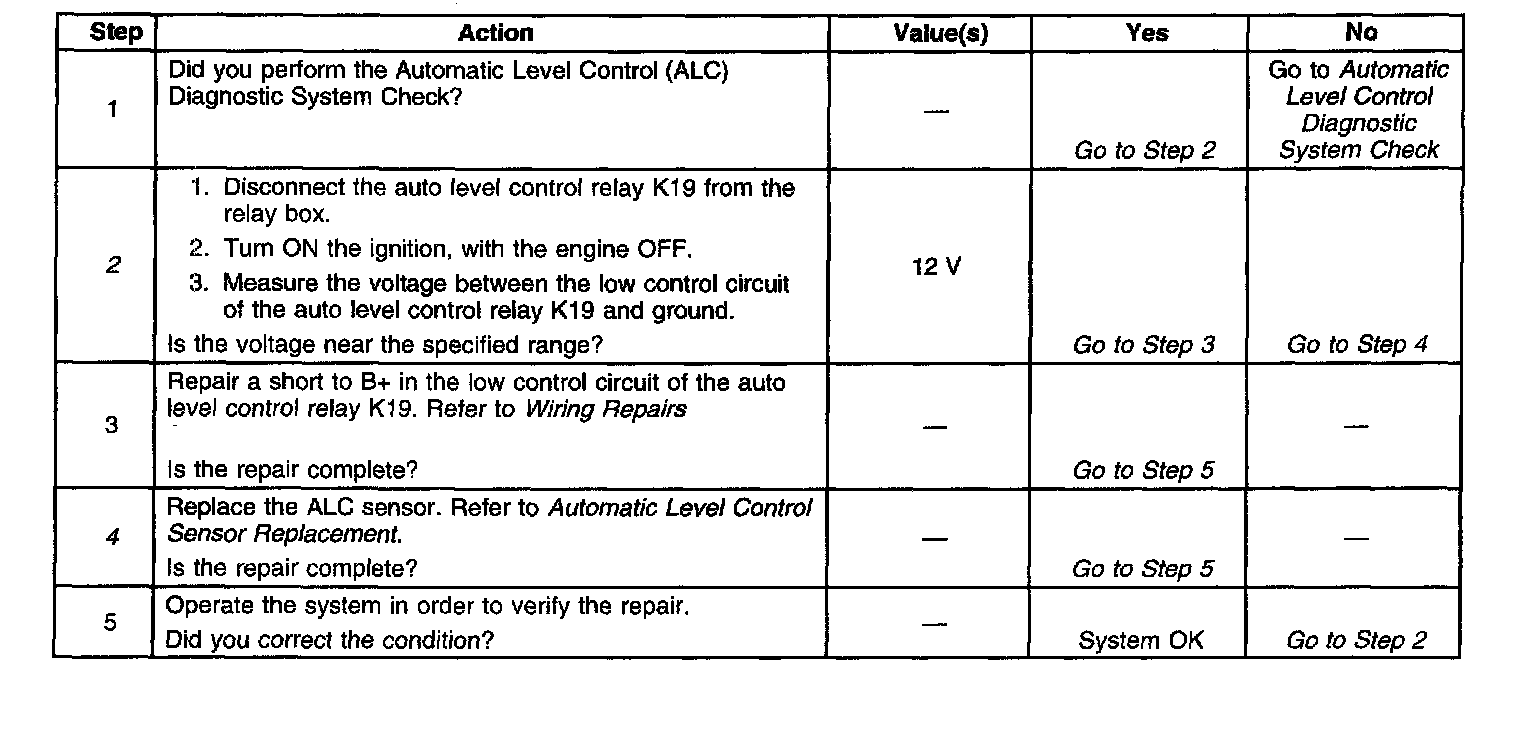

Test Description
The number(s) below refer to the step number(s) on the diagnostic table.
2. This step tests the low control circuit of the auto level control relay K19.
4. This step replaces the ALC sensor.
DTC 05 Compressor Relay Short to Battery
