C0085

Circuit Description
The Outlet valve solenoid circuits are supplied with battery power when the ignition is in the RUN position. The EBCM controls the valve functions by grounding the circuit when necessary.

Conditions for Setting the DTC
The EBCM senses a discrepancy such as an open, short to ground, or short to voltage in the circuit.

Action Taken When the DTC Sets
A malfunction DTC is stored. ABS/TCS disabled ABS/TCS Indicators are turned on. The Red BRAKE Warning Indicator turns on.

Conditions for Clearing the DTC
^ Condition for DTC: is no longer present and scan tool clear DTC function is used.
^ 100 ignition cycles pass with no DTC detected.

Test Description

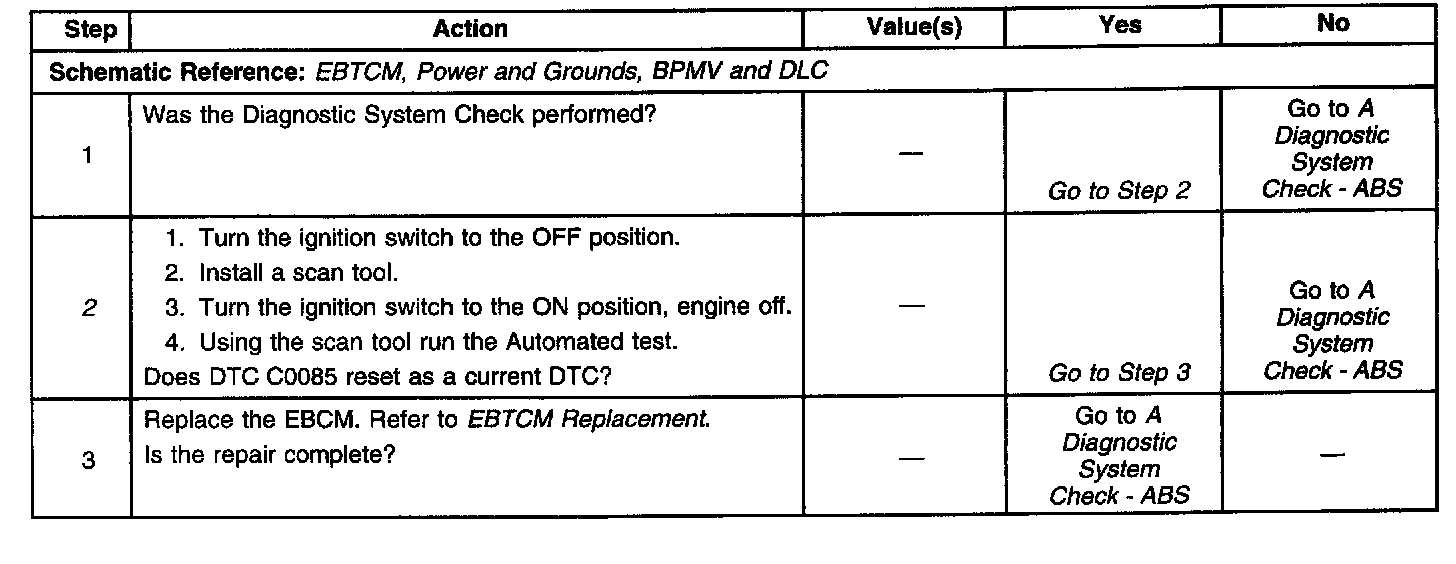

The numbers below refer to step numbers on the Diagnostic Table.
2. This step determines if the DTC is current.
