Body Control System Diagnosis

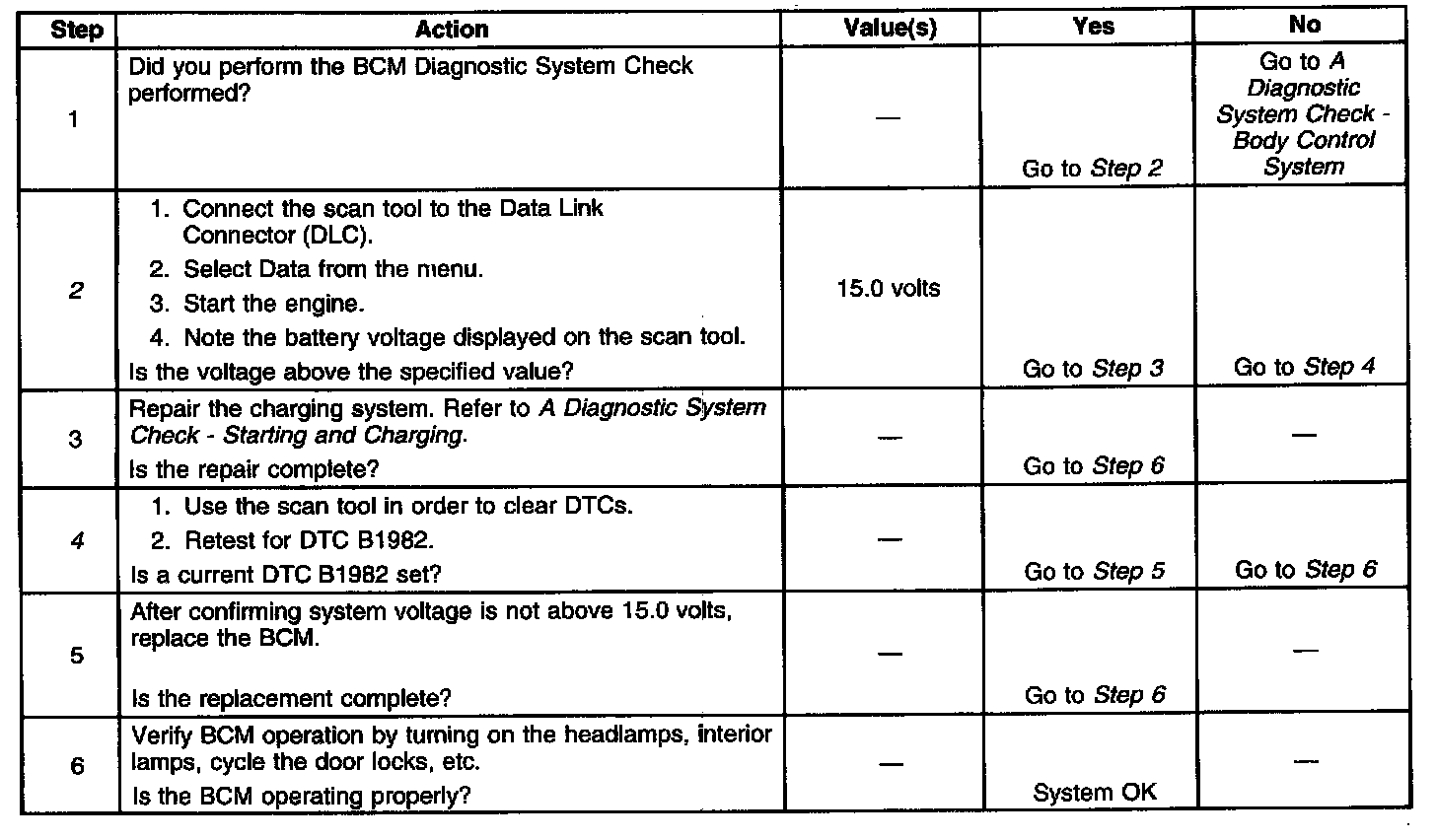

Diagnostic Chart:

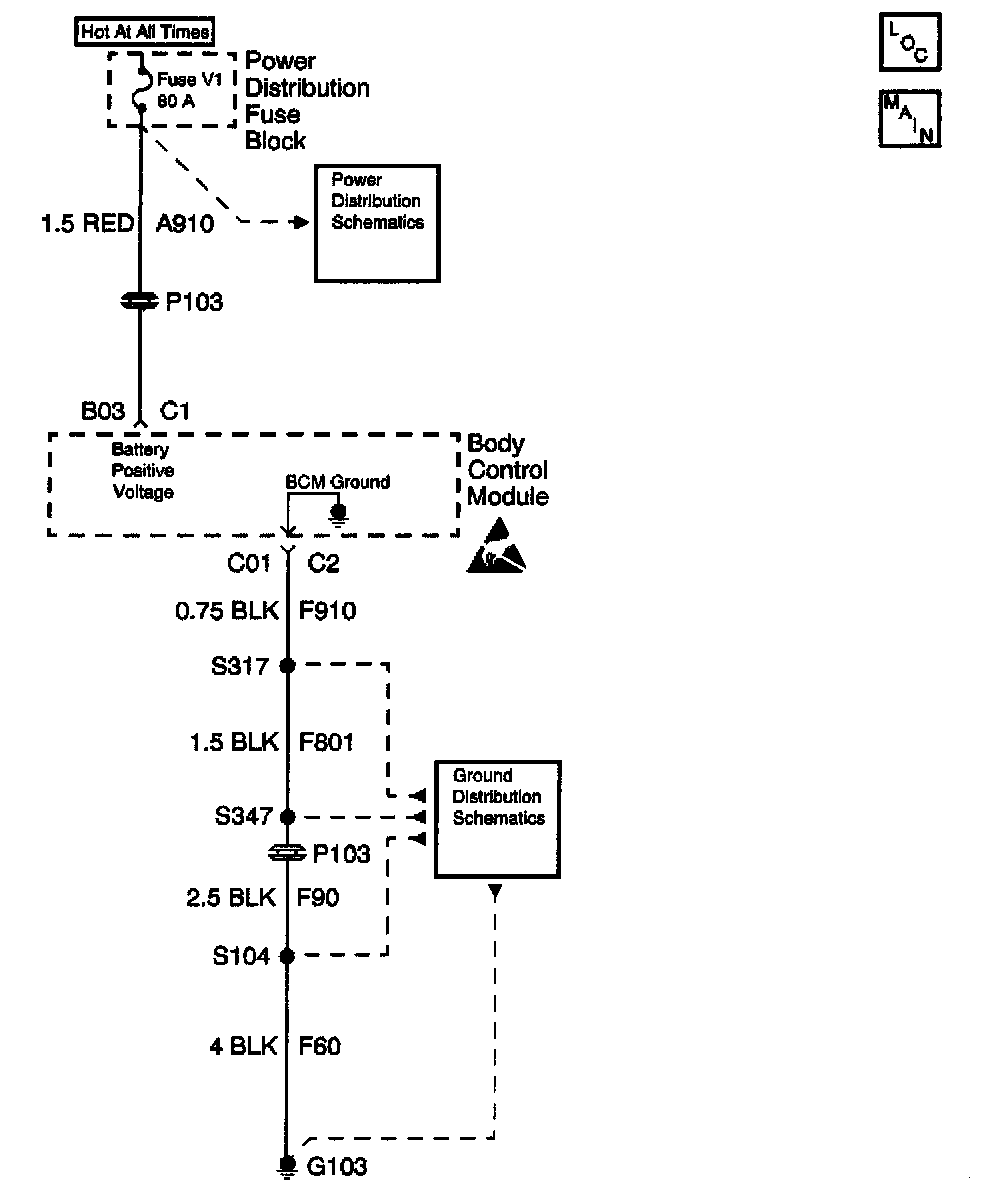

Schematic:

CIRCUIT DESCRIPTION
Battery voltage is supplied to the Body Control Module (BCM) at terminal B3. The BCM uses this power supply to perform most of its functions. The BCM constantly monitors the battery voltage at terminal B3.

CONDITIONS FOR SETTING THE DTC
Battery voltage is tested every 300 ms. The fault code is set when the voltage is above 15.5 Volts for 1200 ms.

ACTION TAKEN WHEN THE DTC SETS
Stores a DTC B1982 in the BCM memory.

CONDITIONS FOR CLEARING THE DTC
^ The BCM no longer detects an overvoltage condition (less that 15.0 Volts) at terminal B3 for 1200 ms.
^ The use of a Scan Tool.
^ A history DTC will clear after 50 consecutive ignition cycles if the condition for the fault is no longer present.

DIAGNOSTIC AIDS
^ Check for an over-charge condition in the charging system.
^ Check the power circuits to the BCM for tight clean connections.
^ Check the ground circuits to the BCM for tight clean connections.
^ For additional information regarding an intermittent condition or history DTC, refer to Inducing Intermittent Fault Conditions in Diagrams, Diagnostic Aids, Troubleshooting Tools.

TEST DESCRIPTION
The following numbers refer to the step numbers on the diagnostic table:
2. The use of the scan tool tests the voltage available at BCM terminal B3.
4. After testing the system voltage, test the BCM again to see if the DTC resets.
