B1760

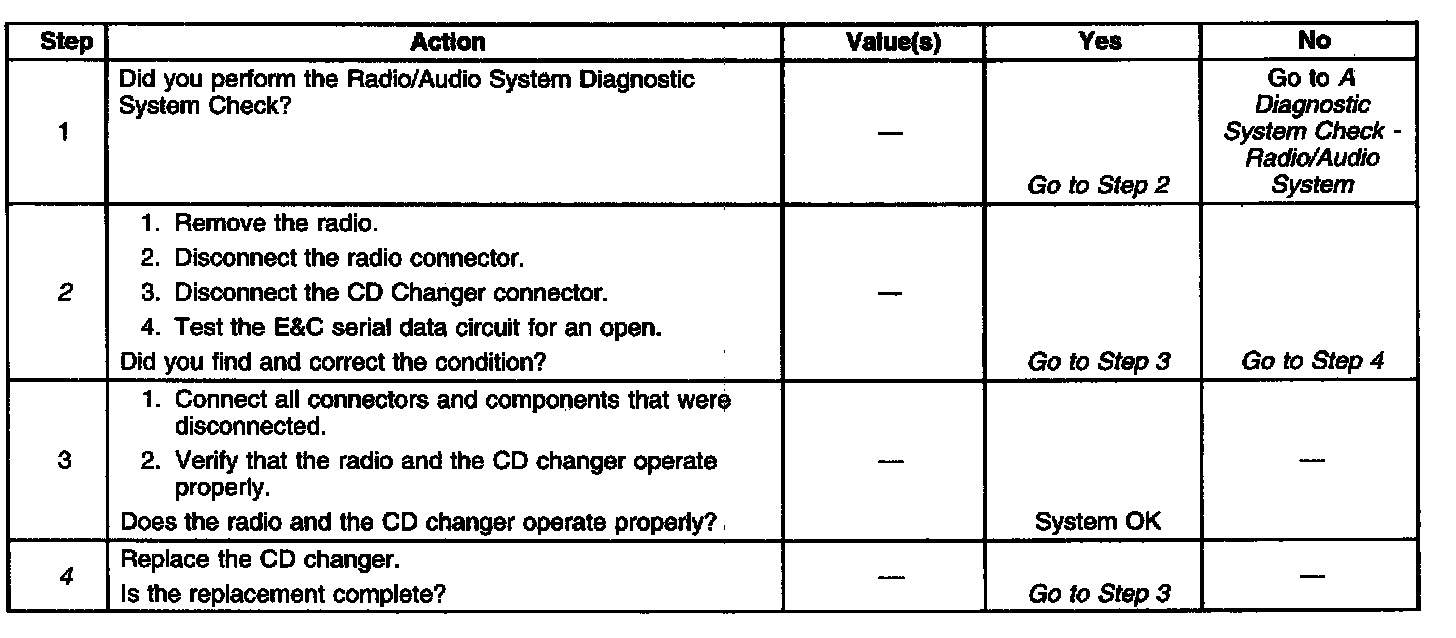

Diagnostic Chart:

CIRCUIT DESCRIPTION
The Integrated Radio Controller (IRC) and the CD changer communicate on the E&C data line. The IRC sets DTC B1760 when it detects a loss of E&C communications with the CD Changer. If the CD changer is not heard from, the IRC initiates communications with the CD changer to determine its integrity.

CONDITIONS FOR SETTING THE DTC
^ This algorithm shall execute when the radio transitions from the OFF to the ON mode.
^ DTC B1760 will set if the IRC detects a loss of E&C communication between the radio and the CD changer

ACTION TAKEN WHEN THE DTC SETS
^ DTC B1760 is stored in the IRC memory.
^ No driver warning message will be displayed for this DTC.

CONDITIONS FOR CLEARING THE DTC
DTC B1760 will clear when the ignition switch is cycled.

DIAGNOSTIC AIDS
If this DTC is intermittent, refer to Intermittents and Poor Connections Diagnosis in Diagrams, Diagnostic Aids, Troubleshooting Tools.

TEST DESCRIPTION
The number(s) below refer to the step number(s) on the diagnostic table.
2. This step tests for an open in the E&C serial data circuit.
4. This step replaces the CD changer after verifying that the serial data circuit is not open.
