Data Link Connector: Service and Repair

REMOVAL PROCEDURE
1. Remove the driver side sound insulator.

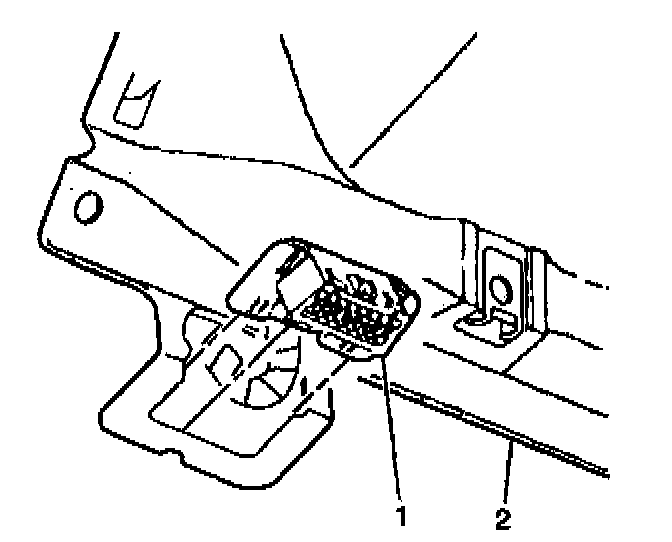

2. Slide the data link connector (1) from the bracket (2).

INSTALLATION PROCEDURE
1. Align the data link connector (1) to the bracket (2) and push into position.
2. Install the driver side sound insulator.
