Driver Door Module Inputs and Outputs

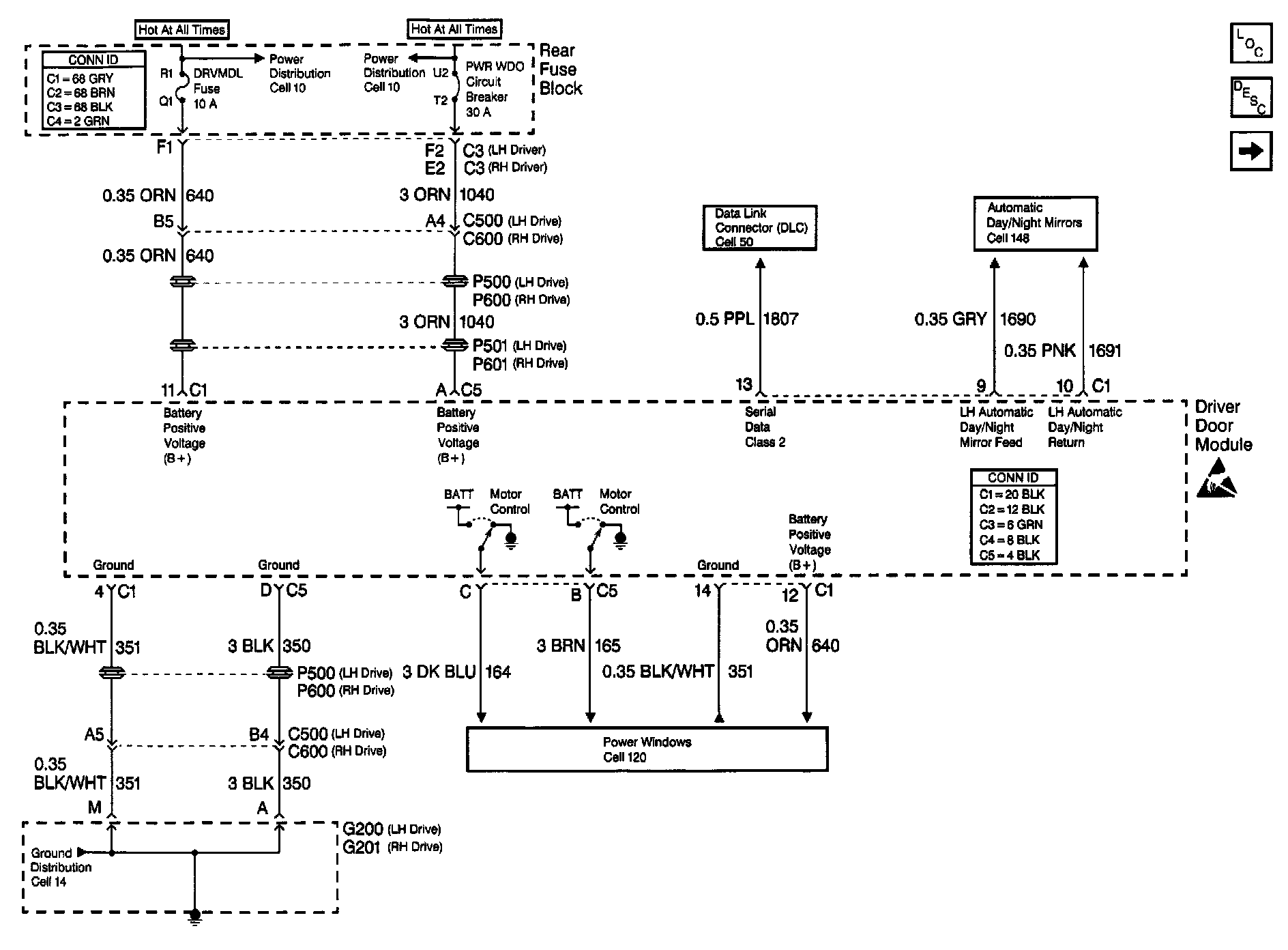

Door Control Module Schematics: Driver Door Module Inputs And Outputs:
