Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ignition Switch
Ignition Switch

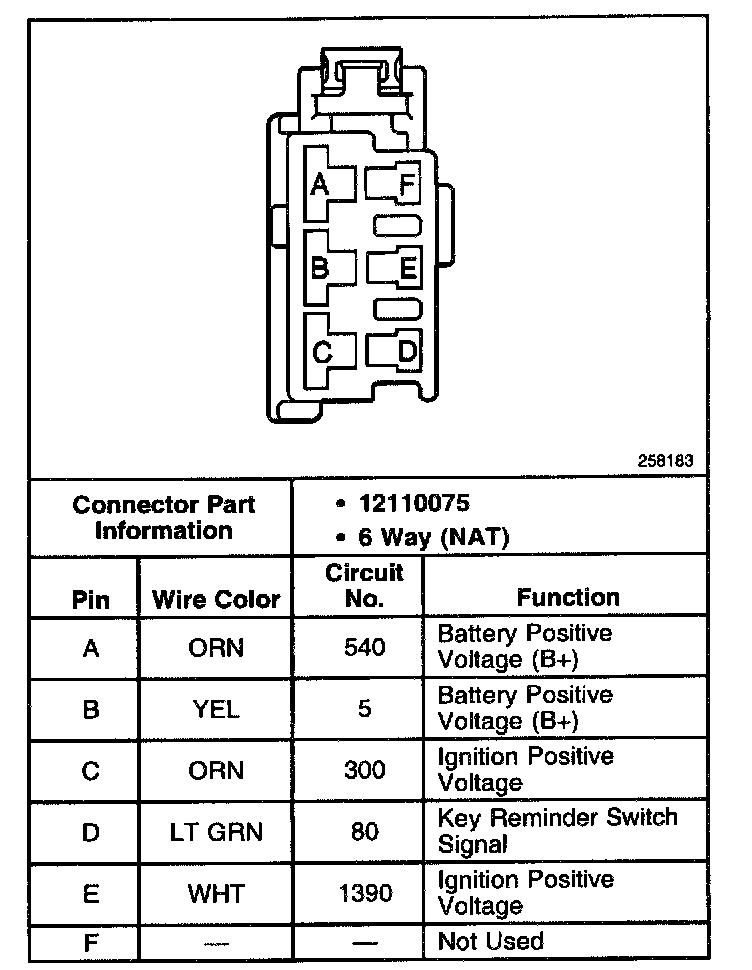

Ignition Switch: C1:

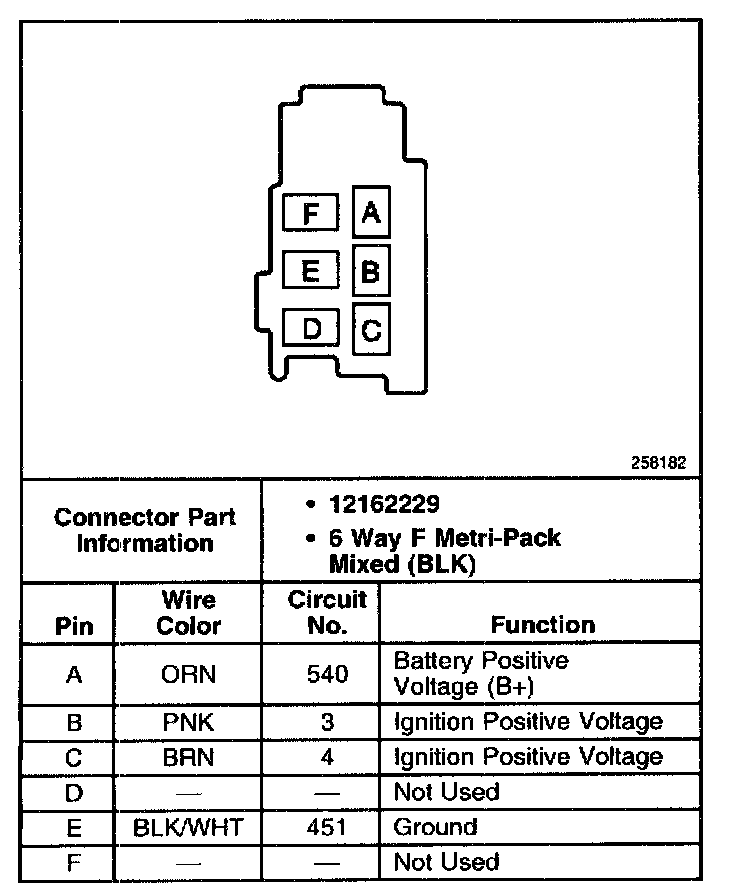

Ignition Switch: C2:
