Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Rear Fuse Block: >> C2

C2

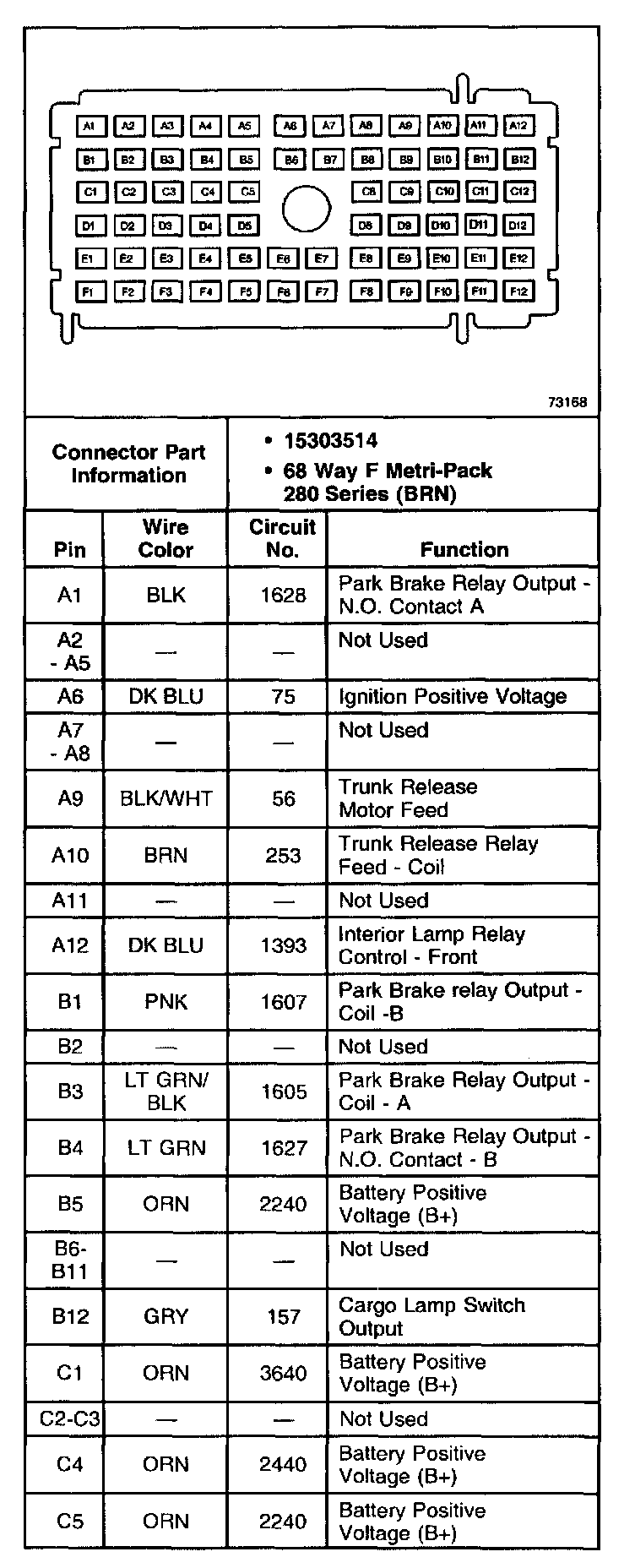

Rear Fuse Block: C2 (Part 1 Of 2):

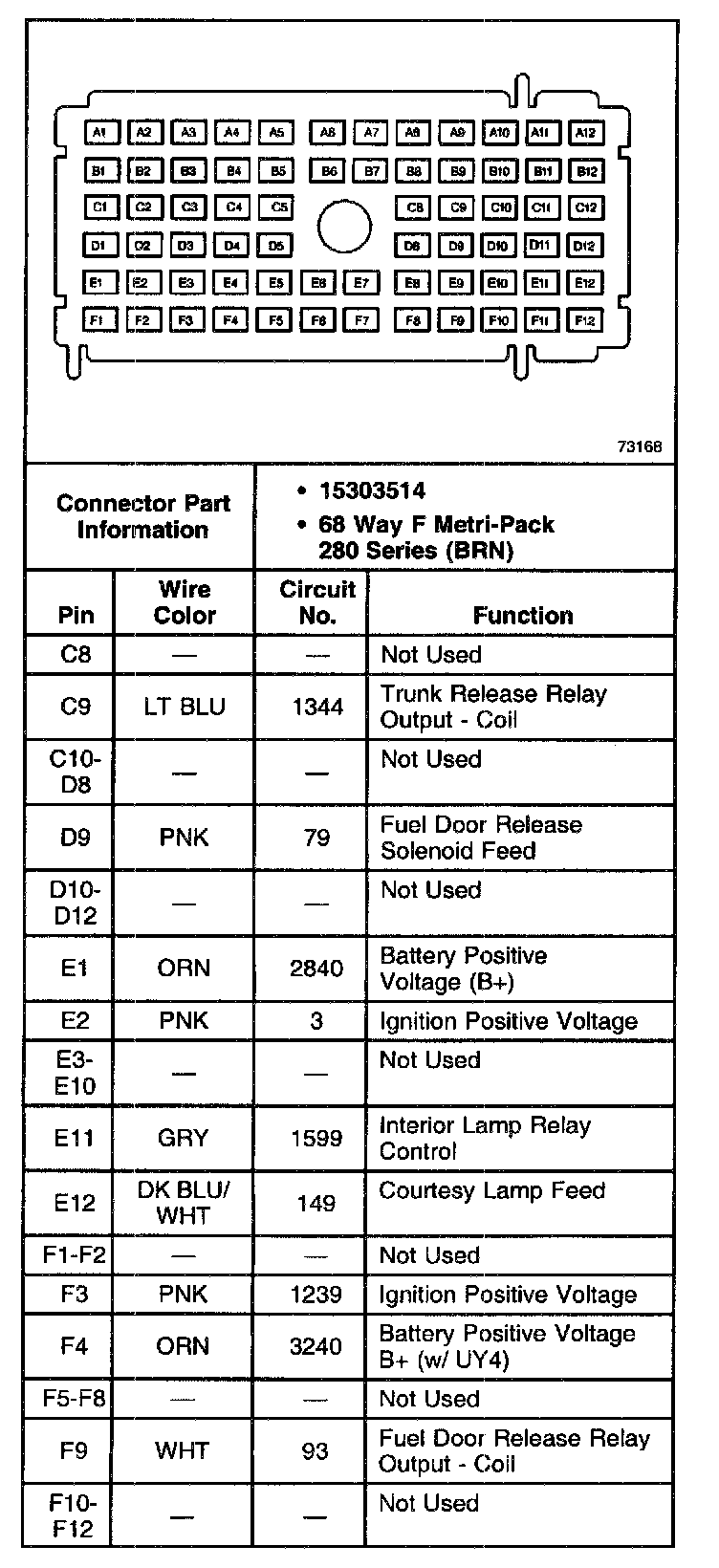

Rear Fuse Block: C2 (Part 2 Of 2):
