Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Door Module (LRDM): C1, LH Rear

Door Module (LRDM): C1, LH Rear

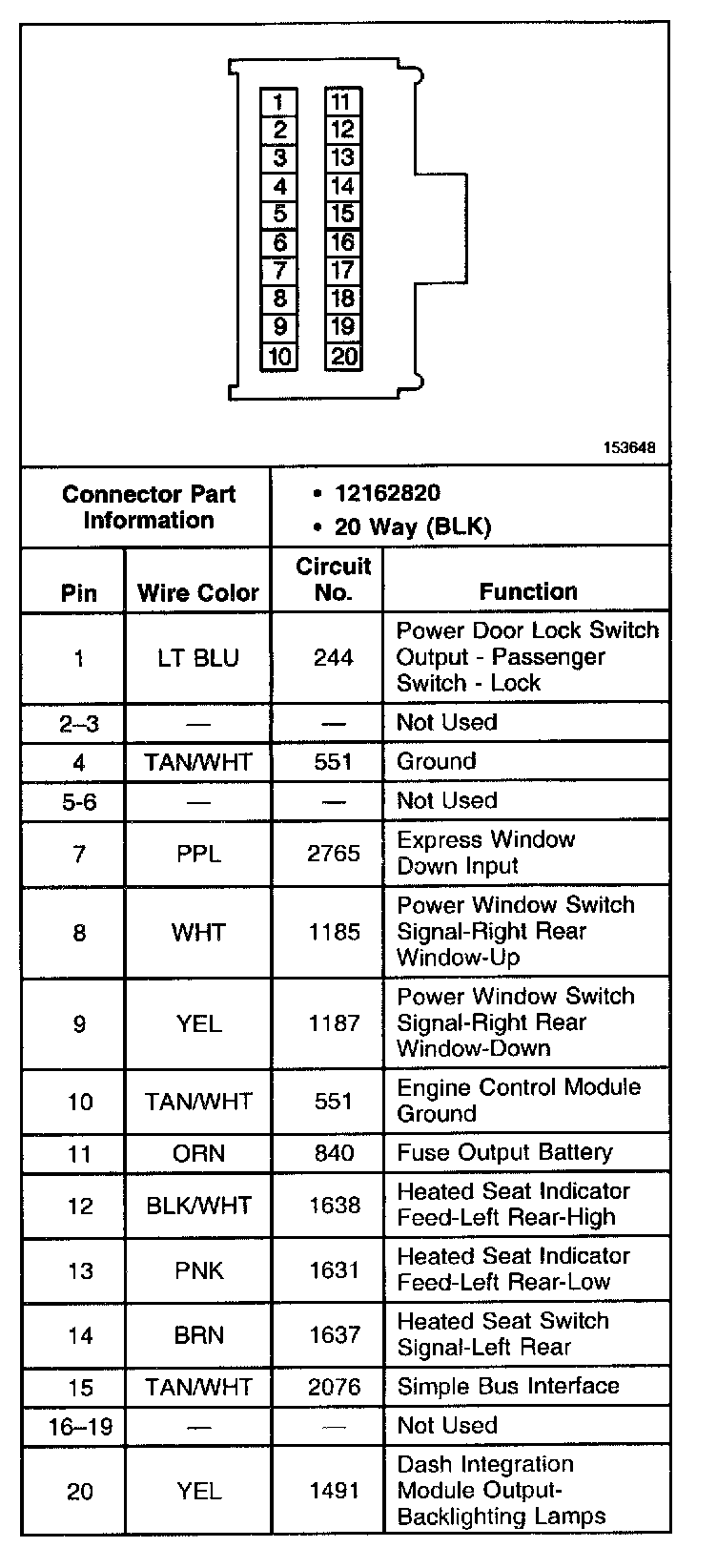

LH Rear Door Module (LRDM): C1:
