Home
>>
Cadillac
>>
1999
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Underhood Fuse Block

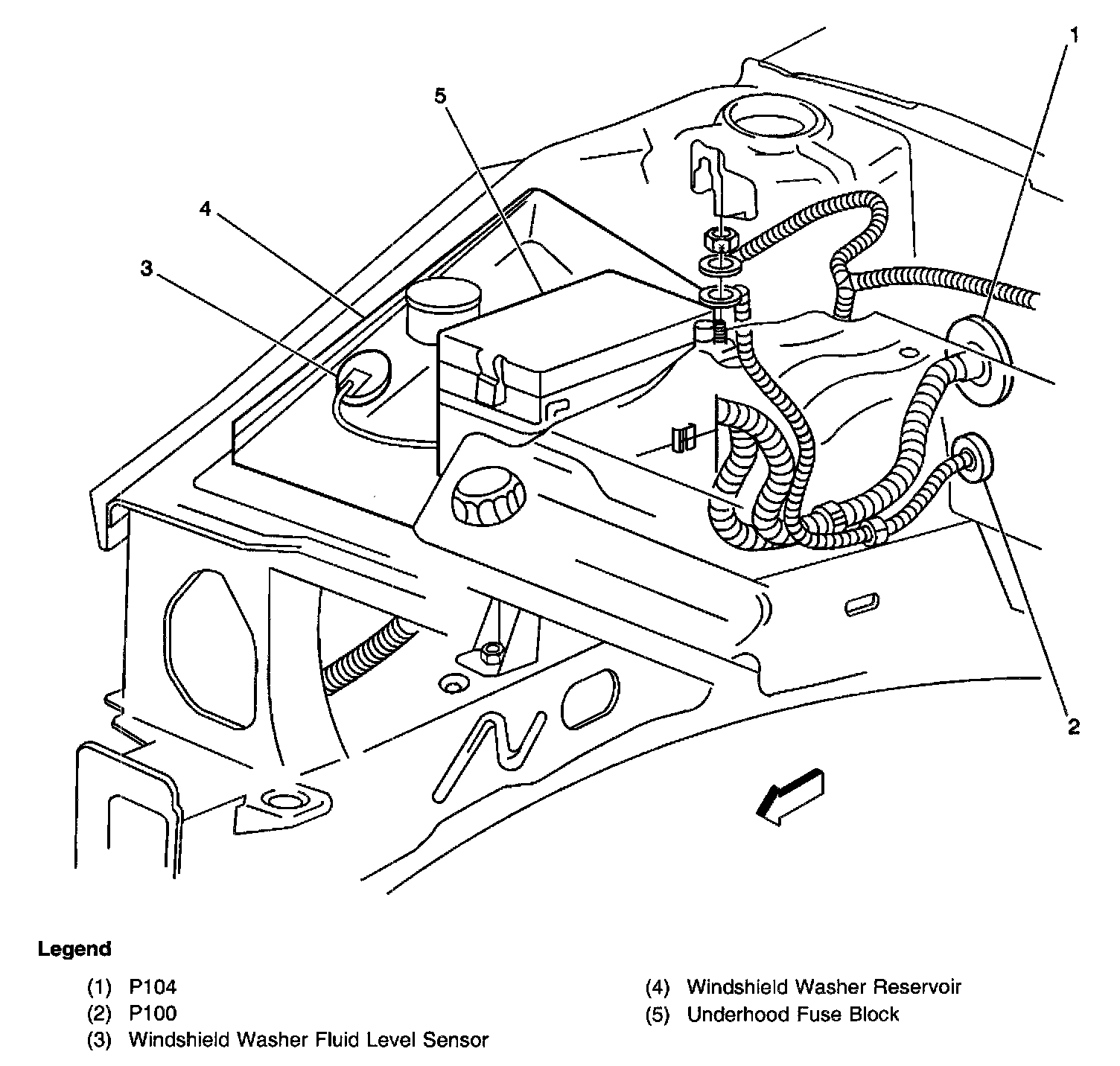

Underhood Fuse Block
Engine Compartment, In The Right Front Corner:
Right side of the engine compartment, near the power steering pump
