Home >> Cadillac >> 1999 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Tail Lamp Assembly

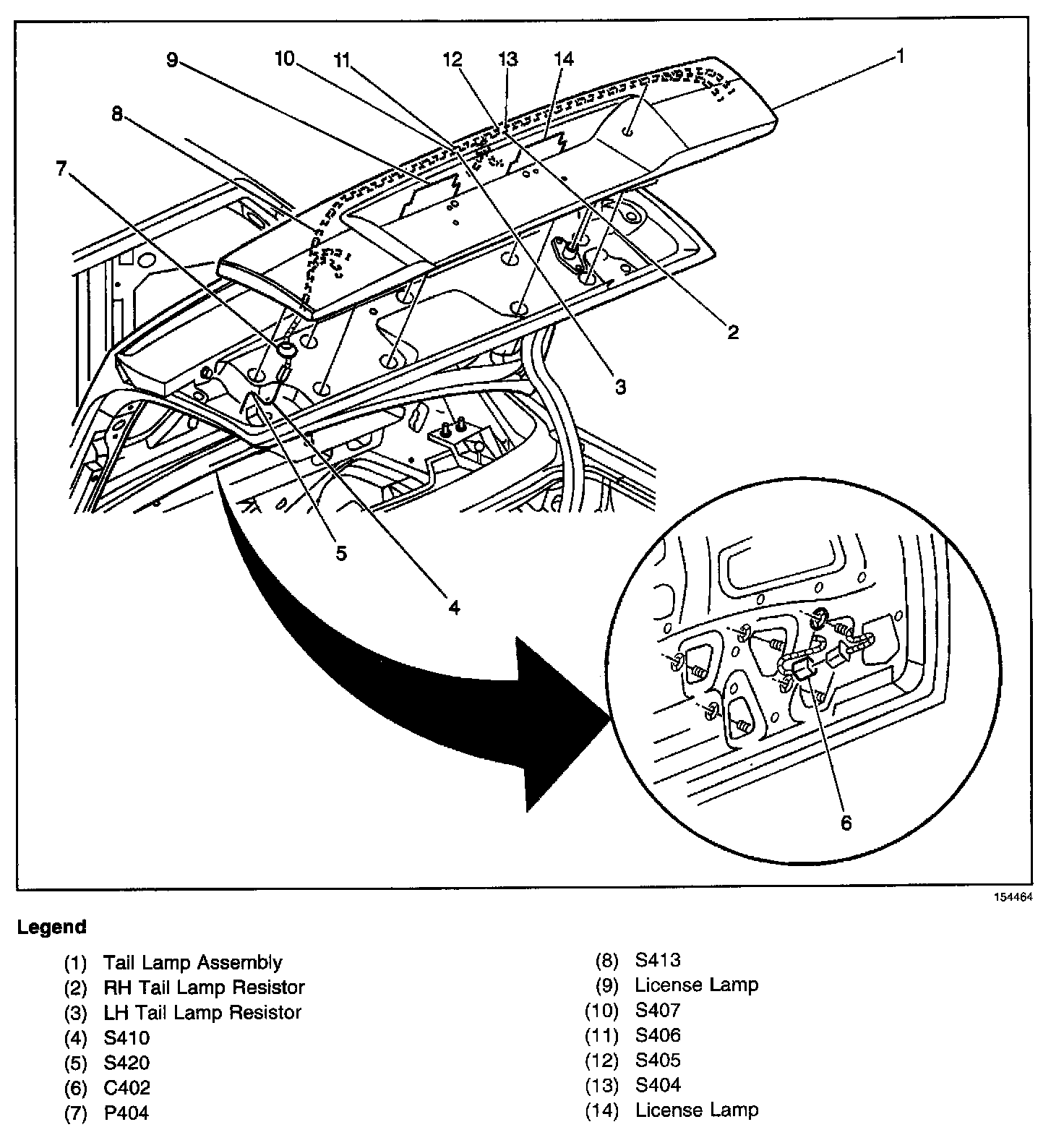

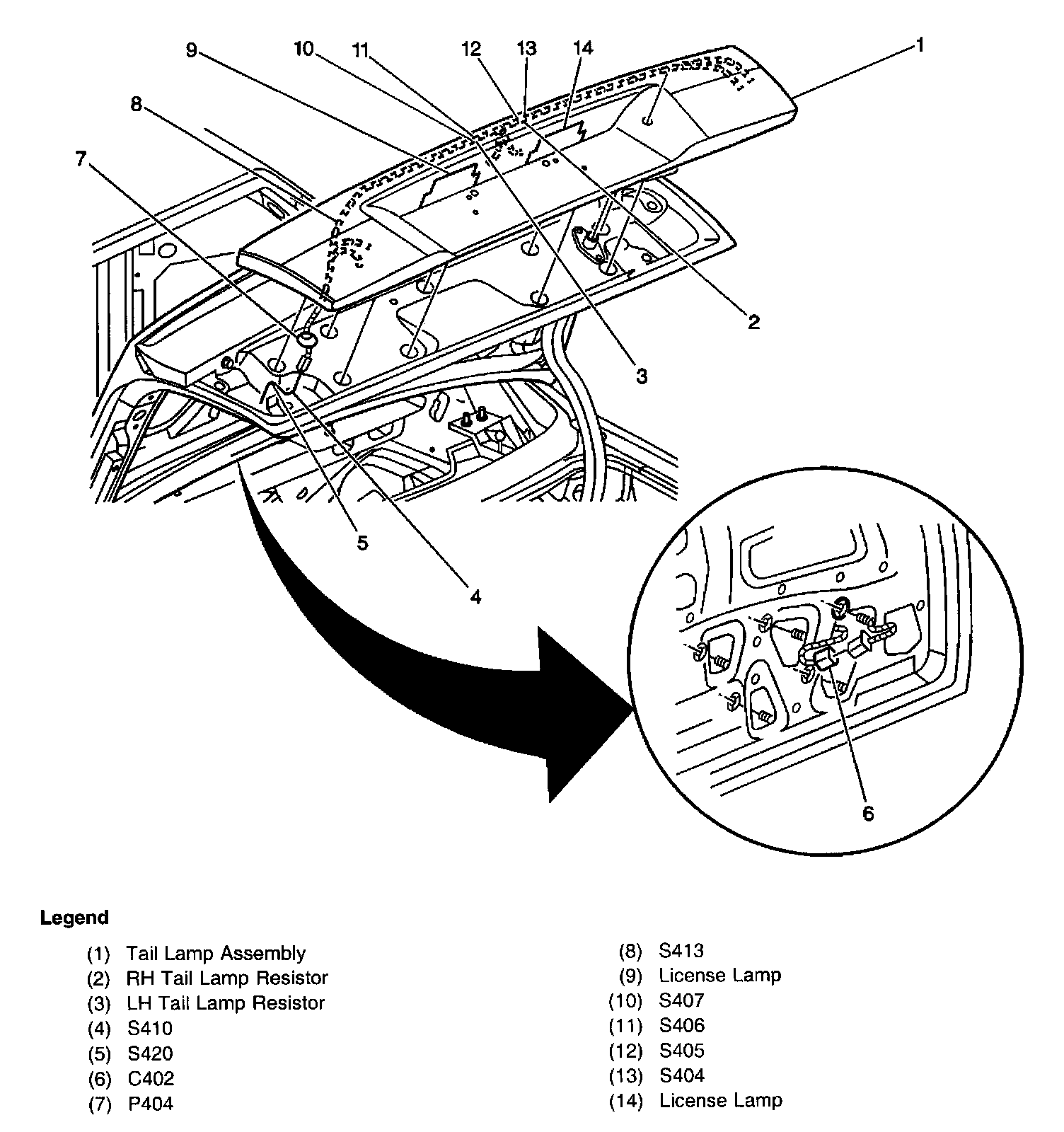

Tail Lamp Assembly

Locations View:



Rear Compartment, Rear Compartment Lid:
