Wiper Motor Replacement
REMOVAL PROCEDURETools Required
J 39232 Wiper Transmission Separator
1. Remove the A/C pipe shroud, as required.
2. Remove the wiper arms.
3. Remove the air inlet grille panel.

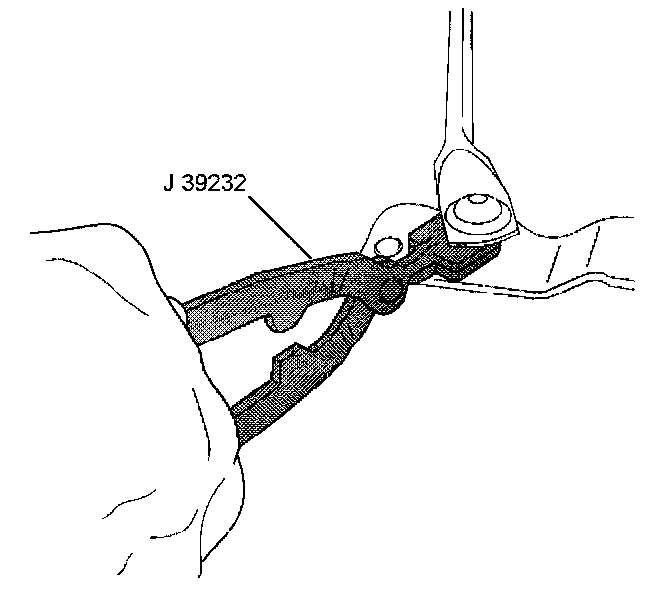

4. Remove the transmission drive link socket from the wiper motor crank arm using the J 39232.
5. Remove the A/C pipe shroud bracket from the wheelhouse, as required.

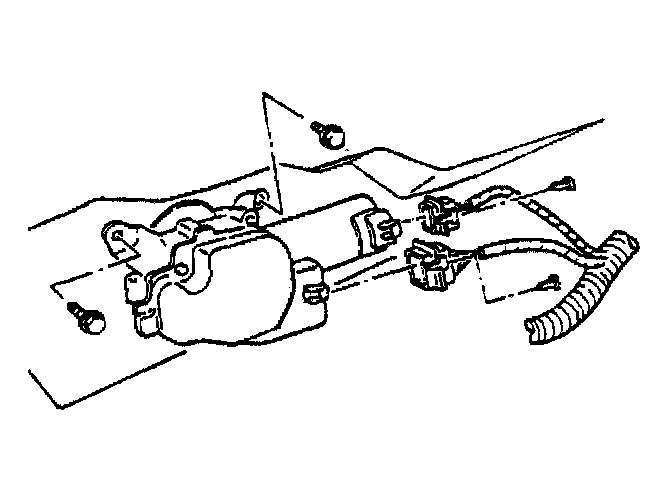

6. Disconnect the electrical connectors from the wiper motor.
7. Remove three screws.
8. Remove the wiper motor.
INSTALLATION PROCEDURE
Tools Required
J 39529 Wiper Linkage Installer
1. Install the wiper motor.
NOTE: Refer to Fastener Notice in Cautions and Notices.
2. Install three screws.
Tighten
Tighten the screws to 9 N.m (80 lb in).
3. Connect the electrical connectors to the wiper motor.
4. Install the A/C shroud bracket onto the wheelhouse, if removed.

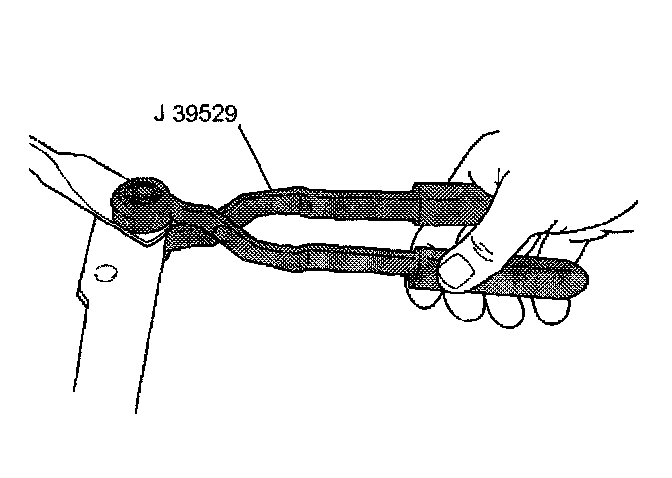

5. Install the transmission drive link socket to the wiper motor crank arm ball using the J 39529.
6. Install the air inlet grille panel.
7. Install the wiper arms.
8. Install the A/C pipe shroud, if removed.
