Wiper Motor Cover Replacement

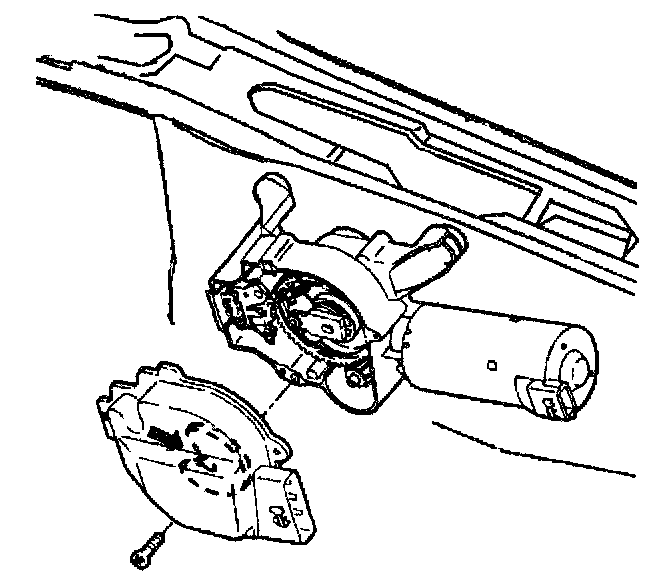

REMOVAL PROCEDURE



1. Disconnect the electrical connectors from the wiper motor and the cover.
2. Remove three screws.
3. Remove the wiper motor cover.

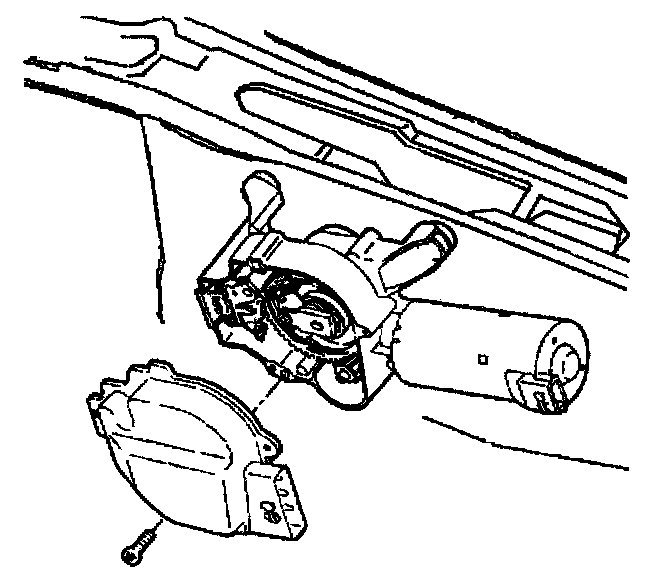

INSTALLATION PROCEDURE

IMPORTANT: Ensure that the wiper motor is in the park position and the drive pin in the open area of the cam.




1. Install the wiper motor cover.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install three screws.

Tighten
Tighten the screws to 2 N.m (18 lb in).

3. Connect the electrical connectors.
