Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams >> Wiper/Washer System (Pulse) Schematic (W/O CE1)

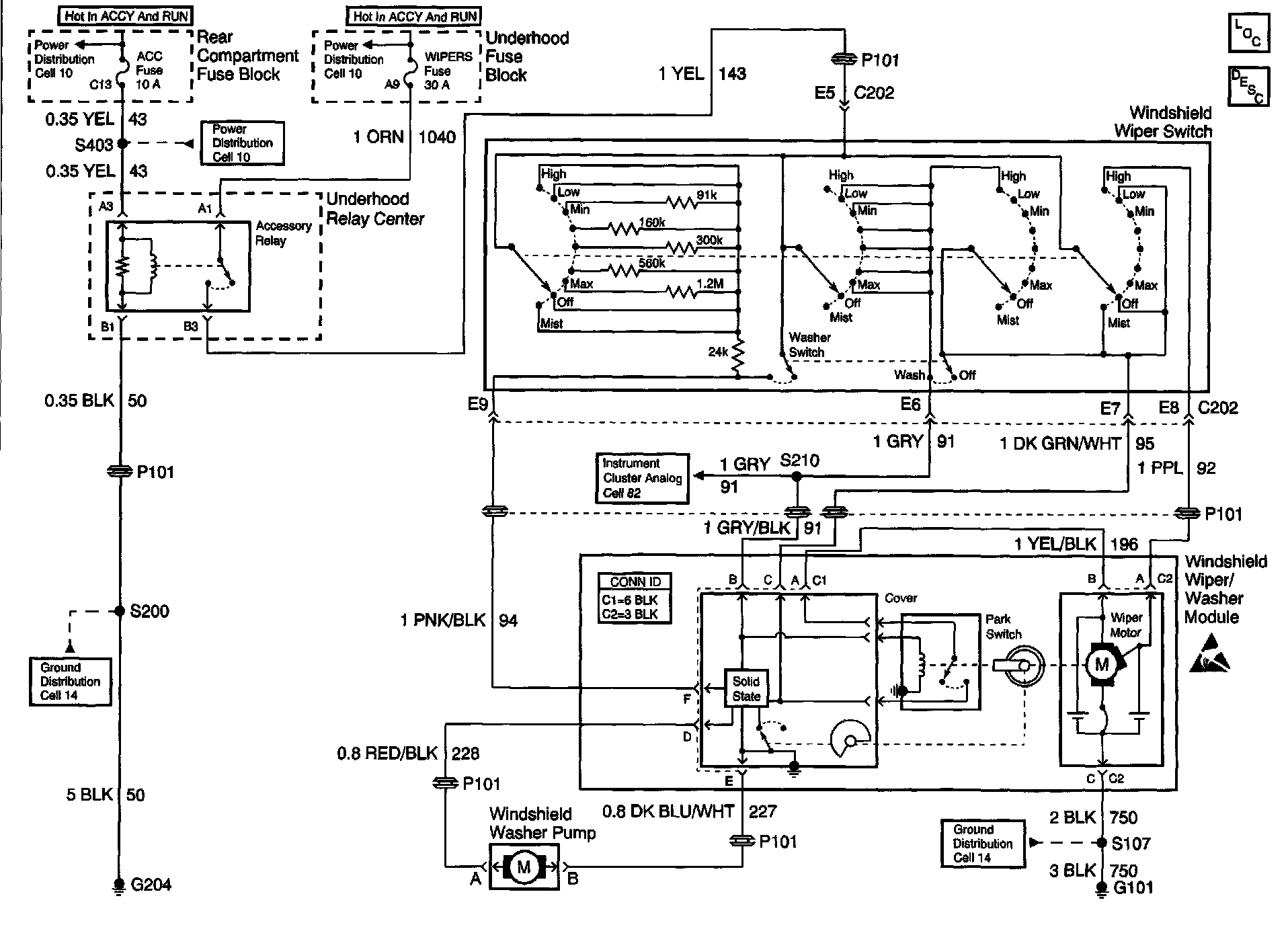

Wiper/Washer System (Pulse) Schematic (W/O CE1)

Wiper/Washer System (Pulse) Schematic (W/o CE1):
