Power Ground and Switch Output

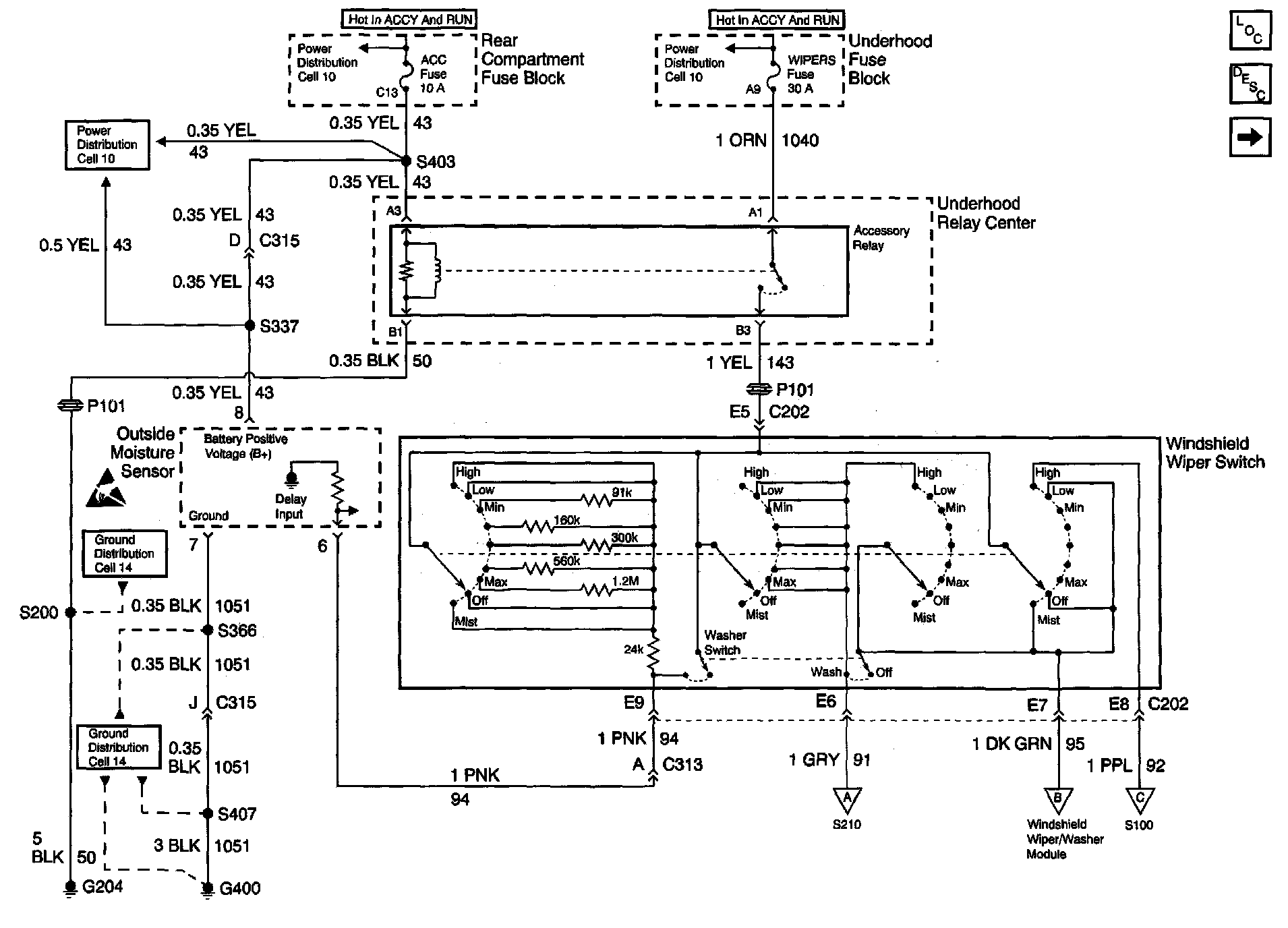

Wiper/Washer System (Pulse) Schematic (W/CE1): Power Ground And Switch Output:
