Home >> Cadillac >> 1999 >> DeVille Concours V8-4.6L VIN 9 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Motor >> Diagrams >> Connector Views >> Rear >> Window Motor, RH Rear

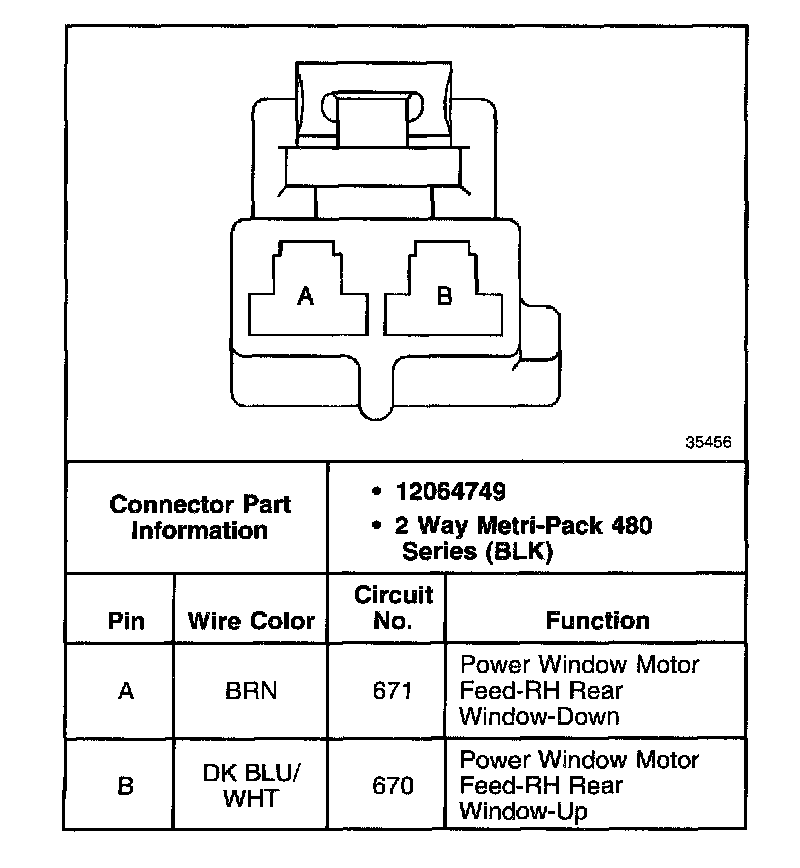

Window Motor, RH Rear

RH Rear Window Motor:
