Flex Plate: Service and Repair

Removal Procedure





1. Remove the transmission assembly.

Important: Do not reuse the flywheel bolts.

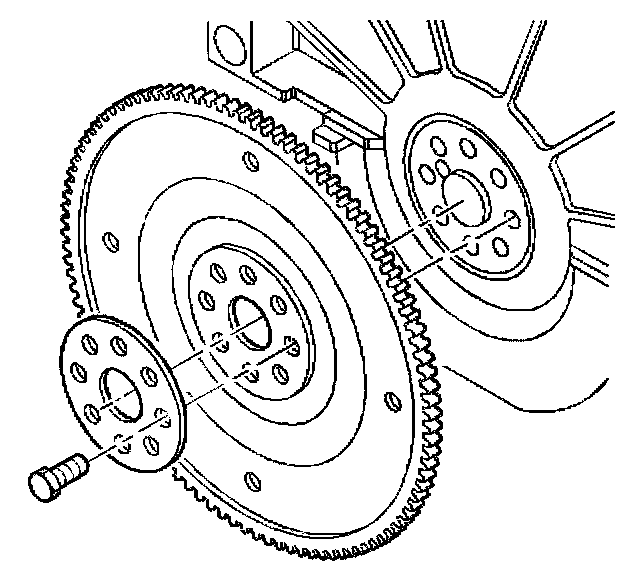

2. Remove eight mounting bolts and remove the flywheel and the reinforcement.

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Position the flywheel and the reinforcement to the crankshaft and install eight mounting bolts.

- Tighten the flywheel bolts to 15 Nm + 50 degrees (11 ft. lbs. + 50 degrees).

2. Install the transmission assembly.
